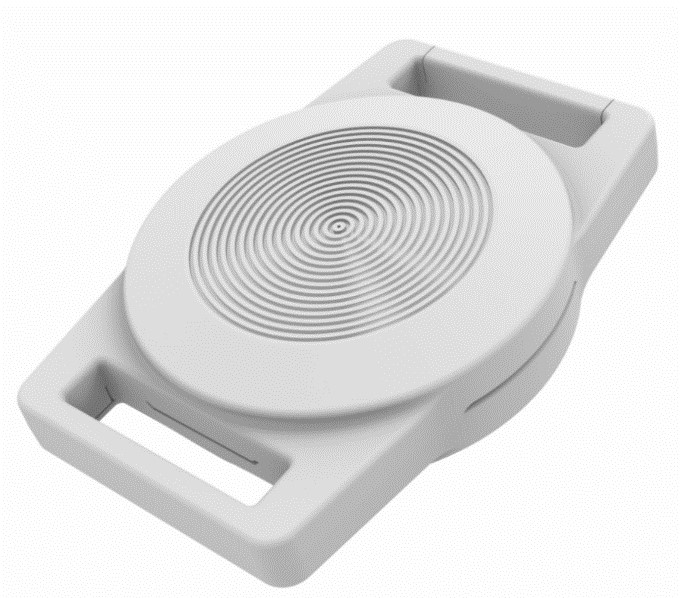

Trax10124-Watch
- The Trax10124-Watch is a portable iBeacon & Eddystone tag
- Chip set nRF52 series and leverage BLE® 4.0 technology
- It has a portable case shape, accurate hardware and robust firmware
- It is designed for commercial advertising and indoor location-based service
- Broadcasts 2.4GHz radio signals at regular and adjustable intervals
- Can be heard and interpreted by iOS and Android BLE-enabled devices that are equipped with many mobile apps
- Watch beacon built with a push button
Description
- Programmed standard iBeaconX firmware
- Portable with external ON/OFF push button
- Ultra-low power consumption chipset nRF52 series with ARM® core
- Easy to print a customization Logo/branding on the case or the button
| Item | Aspect | Comments |
| Case Color | White | Other colors can be customized |
| Main material | ABS | – |
| Battery Model | CR2032 | Coin battery, 1pc, 240mAh |
| Operation Voltage | 1.8-3.6V | DC |
| Average Current | 50 uA | Tested at 0dBm transmission power and 1000ms Advertising Interval. 2 Active SLOTs (URL/TLM). |
| Transmission Range | Up to 90m(+4dBm) | Depending on the environment where the Trax10124-Watch is placed these values might differ. |
| Antenna | 50ohm | Ceramic Antenna |
| Size | 40.42 x 29.05 x 8.63mm | |
| Net Weight | 7.6g | With battery |
| Operating Temperature | -25 to +60ºC | |
| Storage Temperature | 20 to +30ºC |
