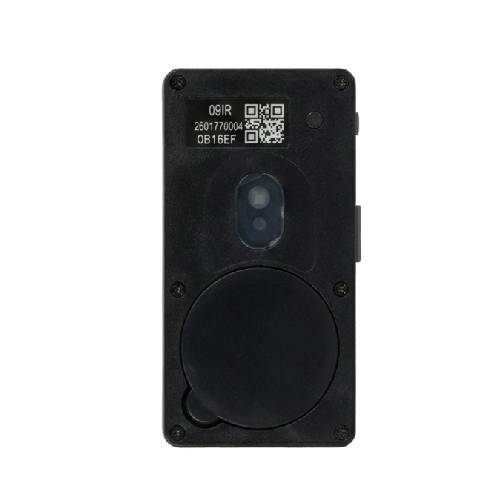

Trax10129P-Proximity Detection
- Trax10129P-Proximity Detection Sensor is an Infrared (IR) proximity sensor for short range detection below 50cm
- The BLE is a very low power 2.4G radio that can transmit the beacon information efficiently. ARM Cortex TM-M3 32-bit processor
- Long battery life: 2-4 year in typical beacon setting.
- Support BLE Beacon Standard 4.2., Android APP for configuration
- Various sensors technology for complex application such as location tracking; building automation, health and wellness monitoring, activity monitoring, access management
Description
- Beacon with Infrared (IR) proximity sensor for short range detection below 50cm.
- Sensor sampling period: 1sec
- User configurable from 100ms~10 min. Default: 10 s
- Powered with 2 x CR2032 battery or external USB
| Item | Aspect |
| Supply Power | Max. +5.5 Volt |
| Voltage Ripple | +-2% |
| Humidity | Max 95%, Non condensing, relative humidity |
| VDD | +5 Volt +- 5% by USB power or +3V by CR2032 battery |
| Frequency band | 2.4GHz |
| Receiver sensitivity | -96 dBm @250kbps, 0.1% BER |
| Size | 55mmx47mmx6mm |
| Maximum transmit power | +2dBm |
| Operating Temperature | -20’C to 60’C |
| Storage Temperature | -20º to 70º Celsius |
| Certificate | Certificate: FCC/TELEC(ready), CE(planning). |
| Battery Life Simulation | 2.9 yr.*, in default transmit period and 120 times/day of detected event |
| Detection distance | 50cm: A4 size white paper 30cm: A4 size black paper |
| Range | Up to 30 M in open space |
| RSSI Accuracy | +- 4 dB |
| Antenna | On board chip antenna |
| Weight | 16g w/ 2XCR2032 battery |
| Current Consumption | Average: 12.25uA*, in default transmit period and 120 times/day of detected event |
* Calculated with 2 X CR2032 with 220mAH capacity. Considering the battery discharge characteristic, only 70% of capacity is used for calculation. This value is just for reference and may be varied with component tolerance and different environment.
