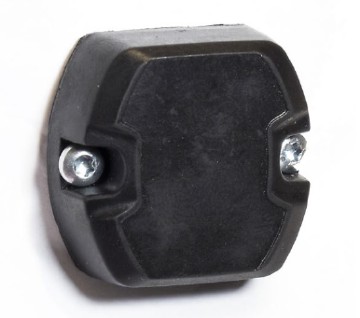

Trax10159-Industrial Grade Beacon
Trax10159 Industrial grade beacon utilizes Eddystone open standard frame format ensuring straightforward implementation on a wide range of Low Energy Beacon devices. Following Eddystone™ frame types are supported, UID, URL, TLM and EID frame broadcasts. Beacon is rugged and reliable industrial grade Bluetooth Low Energy beacon for industrial identify, sense and locate applications.
Description
Eddystone™ frame types specifications as follows 16-byte Beacon ID composed of a 10-byte name space and a 6-byte instance, URL using a compressed encoding format, telemetry information as temperature and encrypted ephemeral identifier that changes periodically.
| Item | Aspect |
| Device type | BLE beacon (Eddystone compatible) |
| Air interface protocol | BLE – Low Energy Beacon Standard 4.2, NFC: ISO/IEC 14443A |
| Operational frequency | ISM: 2.45 GHz, NFC: 13,56 MHz |
| SOC | Nordic Semiconductor NRF52832 |
| Memory configuration | 512 kB FLASH, 64 kB RAM |
| Configuration interface | NFC interface for fast deployments and configuration |
| Sensor* | Built-in temperature sensor; other sensors by request |
| Sensitivity | -96 dBm sensitivity (BLE) |
| Read range** | Up to 200 m / 650 ft |
| Battery type | 2 x CR2477 coin battery for maximal lifetime |
| Operating temperature | -20°C to +60°C / -4°F to +140°F |
| Water resistance | Good, tested 5 hours in 1m deep water (IP68) |
| Vibration resistance | JESD22-B103B, service condition 1; 3-axis vibration with 20G acceleration |
| ESD immunity | ±8 kV according to EN 61000-4-2 (air discharge) |
| ESD immunity | ±4 kV according to EN 61000-4-2 (contact discharge) |
| Chemical resistance | – 168h Motor oil exposure |
| No physical or performance changes in | – 48h Salt water (salinity 10%) exposure |
| Resistance with moderate concentrations | – 48h Sulfuric acid (10%, pH 2) exposure |
| of acids, alcohols, alkalis, detergents and cleaners. | – 48h NaOH (10%, pH 13) exposure |
| Acetone should be avoided | |
| Expected lifetime*** | Up to 10 years (depending on operating mode) |
| Compliance | CE certified, ISED, FCC-ID: 2AMK9-CFXBLE-1 |
| Encapsulation materials | Polyurethane coating |
| Weight | 70 g |
| Tag dimensions | 56 x 54 x 21,3 mm / 2.20 x 2.13 x 0.84 in |
* Sensor is located inside the plastic housing, which limits real time measurement of the ambient temperature. Sensor calibration is available as additional service.
** Read ranges are measured in laboratory environment and there can be some variation in real application.
*** Beacon lifetime in nominal mode is optimized for long term use, and is highly affected by operating mode parameters and ambient temperature. Configured TX power level and advertisement interval have influence on lifetime.
