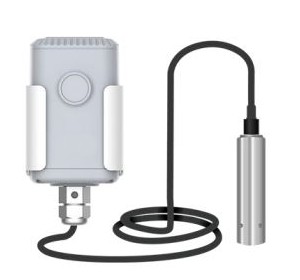

Trax10174-LoRaWAN Water Level Sensor
Trax10174 LoRaWAN sensor provides highly accurate and reliable water level measurements for a variety of applications in harsh environment, like reservoirs, oil tanks, leakage detection, groundwater level, and water tanks. The measurement is based on the liquid depth indicated by absolute pressure. Collecting the data of static water level is a challenge to users. LoRaWAN Sensor is designed to provide convenience of direct submergence in ground, surface, waste and sea water level measurements. The rugged enclosure protection IP66-IP68 and additional cable lengths options are available as customized solutions.
Description
Submersible-type sensors and other items establish a network that can be highly-secure, responsive and conducive to data transmission, value measurement, and timely alert. Users can identify and diagnose well production issues in the first place. The measurement usually is performed early in the morning or late in the evening when there are few people to use water. By adopting water level monitoring solution, user from anywhere and anytime, can have a better understanding of how the well performs when the pump is running the most. Sensor is available in three options of measurements from 3M, 5M, and 10M. Users can choose a proper one to suit the applications.
| Item | Aspect |
| Wireless Transmission | LoRaWAN |
| Tx Power | 16dBm(868)/20dBm(915)/19dBm(470) |
| Sensitivity | -147dBm @300bps |
| Mode | OTAA/ABP Class A |
| Frequency | CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923 |
| Measurement | |
| Pressure Type | Gauge Pressure |
| Range | 0 ~ 3m/5m/10m (H2O), (Customizable up to 200m and for other liquids) |
| Accuracy | ± 0.5% FS |
| Resolution | 0.01m |
| Operation | |
| Power On & Off | NFC, power button (Internal) |
| Configuration | Mobile APP(via NFC) or PC software(via USB Type-C) |
| Physical Characteristics | |
| Cable Length | At least 1-1.5m longer than measuring range |
| Power Supply | 19000 mAh Li-SOCL2 battery (ER34615) |
| Battery Life* | 4 years (10 min interval, SF12), >10 years (10 min interval, SF7) |
| Operating Temperature | -30°C to +70°C (Transceiver)/-10°C to +60°C (Level Sensor) |
| Relative Humidity | 0% to 100% (non-condensing) |
| Ingress Protection | IP66 |
| Dimension | Transceiver: 105.4 × 71 × 69.5 mm (4.1 × 2.8 × 2.7 in) |
| Level Sensor: 122 × ф26 mm (4.8 × ф1.0 in) | |
| Installation | Pole, wall or DIN Rail Mounting |
Applications:
- Water tank level monitoring
- Water resource level monitoring
- ISO tank level monitoring
- Waste water tank monitoring
- Oil store tank level monitoring
