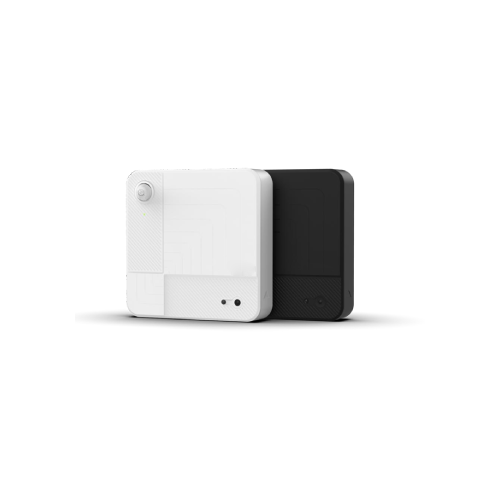

Trax10322 Occupancy LoRaWAN Sensor
Trax10322 Occupancy LoRaWAN Sensor is a low-power, battery-operated wireless occupancy sensor empowered by advanced AI algorithms. It achieves up to 95% occupancy detection accuracy powered by its AI algorithm. It is equipped with built-in temperature, humidity, and ambient light sensors to provide comprehensive environmental monitoring. Its wire-free design enables effortless and flexible installation.
With simple configuration and wireless detection, Trax10322 Occupancy LoRaWAN Sensor can be integrated with the LoRaWAN® gateway and Development Platform, enabling remote monitoring, data visualization, and centralized management. As a D2D controller, Trax10322 Occupancy LoRaWAN Sensor seamlessly communicates with other D2D devices, peer-to-peer interaction without gateway dependency.
Trax 10322 Occupancy LoRaWAN Sensorcan be used in scenarios such as meeting rooms, offices, and campuses to detect space occupancy or personnel activity.
Description
Specification
| Item | Aspect |
| Measurement | |
| People Counting & Occupancy Detection | |
| Field of View | 129 ° Horizontal, 93 ° Vertical |
| Installation Height | 2.4m ~ 4m |
| Required illumination | 50 Lux |
| PIR Measuring Angle | 115° |
| PIR Detection Area | Radius: 4 m (15°C, 3m Installation Height) |
| Temperature | |
| Operating Principle | Digital CMOSens® technology (MEMS) |
| Measuring Range | -40 °C~125 °C |
| Accuracy | ±1 °C |
| Resolution | 0.1 °C |
| Humidity | |
| Operating Principle | Digital CMOSens® technology (MEMS) |
| Measuring Range | 0~100 %RH |
| Accuracy | ± 2.5 %RH |
| Resolution | 0.5 %RH |
| Light | |
| Operating Principle | Photodiode |
| Status | Bright/Dim |
| Transmission | |
| Protocol | LoRaWAN®, D2D |
| Antenna | Internal Antenna |
| Frequency | CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4 |
| Tx Power | 16 dBm (868 MHz)/20 dBm (915 MHz)/19 dBm (470 MHz) |
| Sensitivity | -137 dBm @300bps |
| Work Mode | OTAA/ABP Class A |
| Others | |
| USB | 1 × Type-C Port for Temporary Power Supply2 |
| LED Indicator | 1 × Status Indicator |
| Button | 1 × Multi-function Button |
| Software | |
| Configuration | Bluetooth |
| Advanced Feature | D2D Controller, Data Storage (2045 entries), Data Retransmission, Data Retrievability, Threshold Alarm, Hibernate Mode |
| Physical Characteristics | |
| Power Supply | 4 × 2700 mAh ER14505 Li-SOCl2 Replaceable Batteries |
| Battery Life3 (Working 8h per day, 5-min detection and report interval, 25 °C) | Around 11.3 Years (SF7, EU868) Around 10.8 Years (SF7, US915) Around 7.5 Years (SF10, EU868 & US915) |
| Operating Temperature | 0°C ~ +30°C |
| Relative Humidity | 0 ~ 95% (Non-condensing) |
| Ingress Protection | IP30 |
| Housing&Color | Plastic (UL94, V2) & White/Black (Optional) |
| Weight | 145g (Batteries excluded) |
| Dimension | 100 × 100 × 26 mm (3.94 × 3.94 × 1.02 in) |
| Installation | Ceiling Mounting (Screws or Adhesive Backed Fixed) |
| Approvals | |
| Regulatory | CE, FCC |
| Environmental | RoHS(Planned) |
