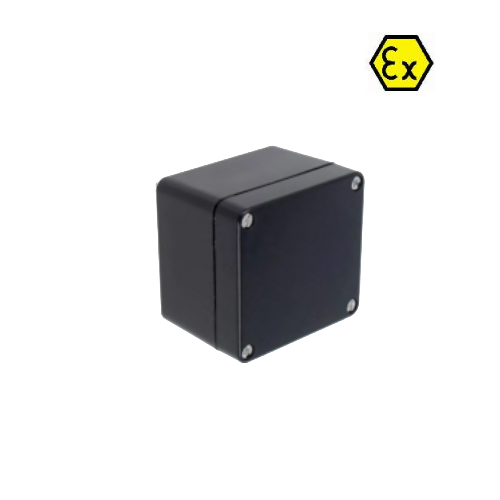

Trax10325 Ultra Rugged Asset ATEX BLE Beacon
- BLE beacon for hazardous areas
- Explosive atmosphere (ATEX Zone 2/22)
- Based on Nordic nRF52832
- Simultaneous support of iBeacon and Eddystone
- Rugged IP66 enclosure
- 2x replaceable 6V lithium batteries
- Ultra-long operating life
Description
| Item | Aspect |
| GATT and advertising | |
| Full support for specifications Eddystone Configuration GATT Service by Google | |
| Up to 4 slots configurable for Eddystone frame types: UID, URL, TLM, EID | |
| Up to 4 slots configurable for the following frame types: iBeacon, Quuppa (emulation mode), Sensors | |
| TX power | -40, -20 to 4 dBm (with 4 dB steps). Programmable for each slot |
| Advertising interval | 0.1 to 60 secs. Programmable for each slot |
| Global configuration options | non-connectable mode, anonymous mode, programmable time period, locked/unlocked mode, change password |
| Firmware update | OTA (Over-the-Air) firmware update |
| Device specifications | |
| Electrical specifications | |
| Core module | Nordic nRF52832 SoC (MCU and radio transceiver) |
| MCU core | ARM Cortex-M4 32-bit CPU |
| Current consumption (25°C) | Radio TX: 7.1 mA (0 dBm TX) Radio RX: 6.5 mA Idle mode: 4 μA Idle mode with accelerometer ON: 8 μA |
| Radio specifications | |
| Standard | Bluetooth 4.2 Bluetooth Low Energy (compatible with BLE 5.2) |
| Frequency band | 2.402 to 2.480 GHz (according to Bluetooth 4.0 specifications) |
| Advertising channels | CH37 (2.402 GHz), CH38 (2.426 GHz), CH39 (2.480 GHz) (according to Bluetooth 4.0 specifications) |
| Channel spacing | 2 MHz (according to Bluetooth 4.0 specifications) |
| TX power | Conducted: +4 dBm (max) EIRP (Equivalent Isotropic Radiated Power): +6 dBm (max) |
| Antenna | |
| Type | Integrated meandered planar inverted F-antenna (PIFA) |
| Gain | 2 dB (max) |
| Radiation diagram | Omnidirectional |
| Battery | |
| Type | AA 3.6V Lithium Thionyl Chloride (LiSoCl2) |
| Model | EVE ER14505 (2700 mAh typ. capacity @ 25°C) |
| Quantity | 2 |
| Total capacity | 5400 mAh |
| Replaceable | Yes |
| Sensors and interfaces | |
| Sensors | 3-axis MEMS linear accelerometer Hall sensor |
| Interfaces | – |
| Mechanical specifications | |
| Material | Glass-Fiber Reinforced Polyester (Graphite added) |
| Color | Black (RAL 9011) |
| Size | 80 x 75 x 55 mm |
| Weight | 250 gr |
| Fastening | External mounting bracket (optional accessory) Silicone glue Double side tape |
| Opening | Front cover with four M4 captive screws |
| Protection | IP66 |
| Flammability | UL94-V0 |
| Environmental specifications | |
| Operating temperature | -20°C to +50°C |
| Storage temperature | +10°C to +30°C (with battery), -25°C to +75°C (without battery) |
| Certifications | |
| CE (RED) ATEX Zone 2/22 (Ex II 3G Ex ic IIC T6 Gc / 3D Ex ic IIIC T85°C Dc) | |
