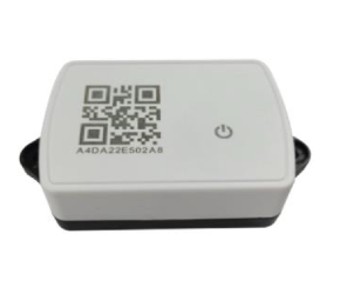

Trax11271-Wirepas Industrial Anchor
Trax11271 Wirepas Industrial Anchor compatible with Wirepas 5.1 is designed to full fill all requirements for asset tracking, logistics, item management or predictive maintenance use cases. Due to its optimized and ultra low power consumption, the anchor guaranties unsurpassed battery lifetimes with and the possibility to replace its battery Its high precision accelerometer sensor permits to detect any movements, vibrations, shocks or a specific fall. Designed for Asset tracking, logistics, predictive maintenance and inventory control.
Description
Trax11271 Wirepas Industrial Anchor with accelerometer parameters are configurable in order to adjust them to the final needs of the application. The Anchor offers also a push button and two LEDs (red and green color). An optional NFC function can be added in order to provide extra information on the asset (Manual, Last date of maintenance, Location) and/or easy pairing function.
| Item | Aspect |
| Standards | Wirepas V5.1, NFC |
| Technology | Wirepas protocol supported |
| Wirepas 5.1 anchor stack protocols supported, Accelerometer sensor | |
| Two LEDs: Green and Red color (Customizable) | |
| Frequency | 2.45GHz |
| Battery | 4 AA Batteries, 5,2 Ah – Replaceable |
| Battery Life | Up to 8 years depending on the Wirepas tag parameters |
| Reading Range | 100 Meters for Wirepas, Line of Sight up to 200 meters |
| Switch | Customizable under request |
| Dimensions | 91.50mm x 48.60mm x 36.80mm |
| Color | White, black base |
| Material | HIPS |
| Weight | 163.00 g |
| Operating Temp | -20°C to +54°C or -4°F to +129.2°F |
| Storage Temp | -20°C to +54°C or -4°F to +129.2°F |
| IP Rating | IP67 (1m, 24h) |
| Environmental | Saltwater, salt mist, acetic acid water, carbonated sodium water, |
| Chemical properties | Sugared water, ethylene glycol, humidity 95% (50°C, 24h) |
| Certificates | BLE, CE, FCC, ISED, RoHS & Reach, Conflict free sourcing |
| Optional Printing | Silkscreen printing, Laser Engraving |
| Beacon attachment | Screws, Rivets (Not included) |
| Standard Version | Wirepas 5.1 Anchor |
| Customize Version | Printing, personalization and other features |
Applications:
- Asset tracking
- Inventory Management
- Location based applications
- Equipment Monitoring
