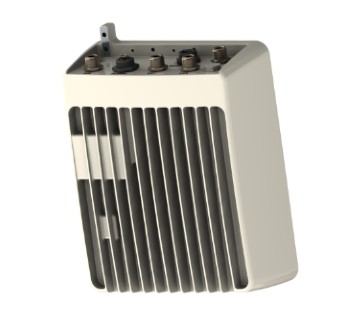

Trax20211-Industrial Carrier Grade IoT Gateway
- Trax20211 features Industrial carrier grade IoT LoRaWAN gateway for outdoor deployments
- Gateway enables massive scalability in a compact form factor by supporting up to 12 million messages per day
- Ideal for public and private network operators that require Full Duplex, multiple Rx and Tx Channels
- Cost effective and reliable LoRaWAN® gateways to maximize their network investment for years to come
- Environmentally hardened aluminum enclosure fully tested to withstand extreme temperature conditions, rated IP67
Description
- Excellent isolation between the Tx and Rx bands, frequency duplex 72 Rx/ 4Tx
- Band rejection of Cellular and Paging networks
- Fully integrated with the broader eco-system of LoRa™ network servers and sensors
- Easy to deploy supporting different backhaul and power options
- Precise Network Synchronization (GPS), integrated GPS Holdover
| Item | Aspect |
| Radio – ISM NA Bands | 902 – 915 MHz (Rx) |
| ISM NA Bands | 923 – 928 MHz (Tx) |
| Tx Power | 2 x 1W (2 x 30 dBm) |
| Rx Sensitivity | -142 dBm (SF12, 293 bits/sec) |
| Rx Noise Figure | 3.5 dB |
| Rx Linearity | -10 dBm |
| Rx Dynamic Range | 70 dB Analog, 100+ dB Digital |
| Tx to Rx Isolation | 75 dB |
| Ethernet Backhaul | RJ-45 |
| GPS | N-Type |
| Cellular Backhaul (3G/4G) | N-Type (Optional) |
| Hybrid Optical and DC Power | Harting Hybrid (Optional) |
| LoRa Antenna (2 ports) | N-Type (2nd Port Optional) |
| Power | -48VDC or PoE++ (802.3bt) |
| Networking | DHCPv4 client, TFTP server, HTTP server, Firewall and Access Lists |
| Safety | UL 60950-1 (US/C) |
| Environmental | ETSI EN 300 019-2-1, 300 019-2-2 ETSI EN 300 019-2-3, 300 019-2-4 |
| Regulatory | FCC Part 15.247, 109, 209 |
| MTBF | 450,000 hours |
| DC Power Consumption | < 40 W |
| Operational Temperature | -40°C to +55°C |
| Operational Humidity | 10% to 100% Condensing |
| Ingress Protection | IP67 |
| Size | 222.2 x 267.6 x 101 mm |
| Weight | 5 kg |
| Volume | 5.5 L |
| Tools | Access Control List Management System, Health Monitor, Remote Software Upgrade, 3G/4G Parameter Configuration, Field Configuration Tool, Factory image provisioning, Radio Configuration and Control |
| Gateway option NA915, EU868, AU915, AS923, CH470 ISM Band | Ethernet, 1 Antenna (Standard) |
| option1 | Cell Modem, 1 Antenna (optional) |
| option2 | Ethernet 2 Antenna (optional) |
| option3 | Cell Modem, 2 Antenna (optional) |
