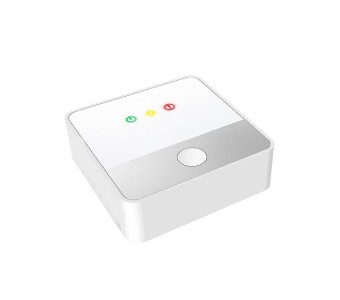

Trax20219-BLE Gateway
Trax20219 BLE Gateway is compatible with BLE 5.0, designed for various tracking and locating applications. With Linux OS, Gateway can be networked through Ethernet or WiFi, upgradeable over the network. Gateway supports data from iBeacon, Eddystone, BLE sensor and other BLE devices, and then sends to the local server or remote cloud server by HTTP / MQTT protocol over Wi-Fi / Ethernet.
Description
Gateway supports the latest BLE 5.0 protocol and has a higher transmission rate and read distance of up to 100 meters. Gateway is also designed to work as AP or Client mode.
| Item | Aspect |
| BLE Protocol | BLE 5.0 Compatible, Silicon Labs |
| TX Power | 19.5dBm |
| Range | 100 meters, open area |
| Receiving Sensibility | -94.4dBm@2Mbit/s |
| Frequency offset | +/-50kHz |
| Ethernet Interface | 10/100 Ethernet |
| Power supply | DC 5.0V, 1A, micro-USB |
| Operating System | Linux |
| Processor | MTK7688 (MIPS24KEc(580MHZ)) |
| RAM/ Flash | 64MB / 16 MB |
| Indicator LEDs | Green, Yellow, Red |
| Button | BLE switch |
| Wireless LAN standard | IEEE802.11n; IEEE802.11g; IEEE 802.11b |
| Transmission rate | 300 Mbps |
| WiFi Range | Up to 50 Meters, open area |
| Antenna | 2.402Ghz-2.483Ghz, Type – FPC |
| Operating Temperature | -25℃ to 65℃ |
| Quality tested | ESD, RF Antenna, BLE, Environment and Reliability |
| Certification | FCC, CE, ISED, RoHS compliance (Lead-free) & BLE |
| Standard version | Gateway with WiFi (2.45), BLE 5.0 |
