Trax10127T-Temp/Humidity
Specifications:

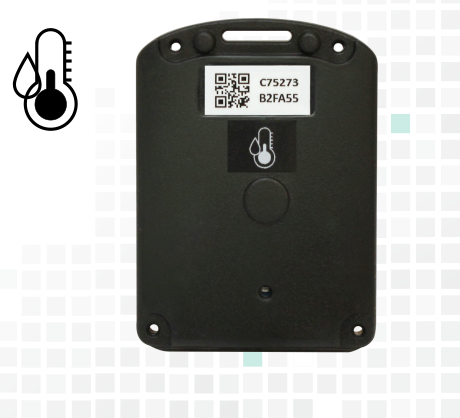

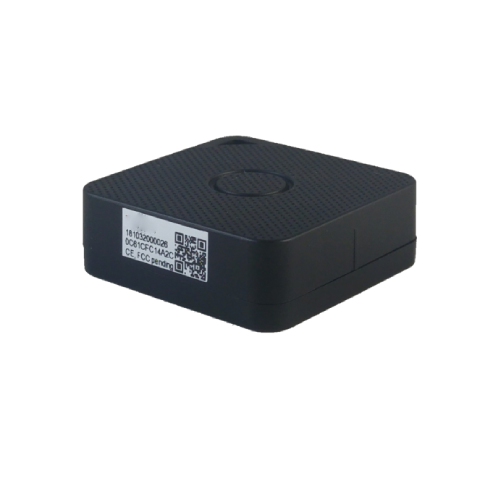

- Trax10127T-Temp/Humidity Sensor is a Beacon with humidity/temperature sensor for environment monitoring
- The BLE is a very low power 2.4G radio that can transmit the beacon information efficiently
- Beacon battery life is 2.8year in default settings
- Links to Cloud with Beacon Gateway
Description
- Beacon with humidity/temperature sensor for environment monitoring
- User configurable from 100ms~10 s Default: 5 s Sensor updated: 10s
- Various sensors technology for complex applications such as location tracking, building automation, health & wellness monitoring, activity monitoring and access management
| Item | Aspect |
| Supply Power | Max. +5.5 Volt |
| Voltage Ripple | +-2% |
| Humidity | Max 95%, Non condensing, relative humidity |
| VDD | +5 Volt +- 5% by USB power or +3V by CR2032 battery |
| Frequency band | 2.4GHz |
| Receiver sensitivity | -96 dBm @250kbps, 0.1% BER |
| Size | 58mmx42mmx10mm |
| Maximum transmit power | +4dB |
| Operating Temperature | -20’C to 60’C |
| Storage Temperature | -40º to 85º Celsius |
| Certificate | CE/FCC/TELEC/NCC |
| Battery Life Simulation | 2.1 yr.*, in default transmit period. |
| Humidity accuracy | 0-80%RH: Typ +-2%, max +-3% 80-100%RH: Typ +-3%, max +-4.5% |
| Response time | Typ: 18 s, at 1m/s airflow |
| Drift | Typ: 0.05 %RH/ oC |
| Long term stability | Typ: <=0.25 %RH/yr. |
| Temperature accuracy | -10 oC-85 oC: Typ: +-0.3 oC, Max: +-0.4 oC -20 oC: Typ: +-0.43 oC, Max: +-0.57 oC |
| Response time | Typ: 5.1 s |
| Long term stability | Typ: <=0.01 oC/yr. |
| Current Consumption | Average: 16.87uA*, in default transmit period |
* Calculated with 2 X CR2032 with 220mAH capacity. Considering the battery discharge characteristic, only 70% of capacity is used for calculation. This value is just for reference and may be varied with component tolerance and different environment.
