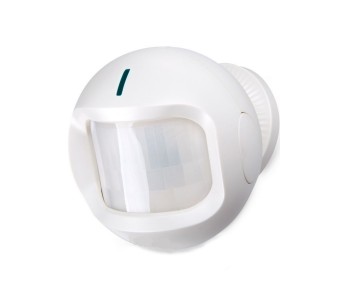

Trax10154-LoRaWAN Occupancy Sensor
Trax10154 is a long distance LoRaWAN™ PIR-based device (Class A). It features additional sensors like motion detection, temperature and light. Sensor could be used to track and monitor movement of people and objects within a specific work area. Infrared signals captured is sent to the connected LoRaWAN gateway for further reporting, based on different configurations settings you are able to collect light level, temperature and indoor movement detection.
Description
- Wireless range of up to 10 km*
- Frequency Hopping Spread Spectrum (FHSS)
- Encrypt-RF™ Security (Diffie-Hellman Key Exchange + AES-128 CBC for sensor data messages)
- Over-the-air updates (future updates)
| Item | Aspect |
| Frequency – Tx Power | 19dBm±1dBm |
| Rx Sensitivity | -136dBm (LoRa，Spreading Factor=12，Bit Rate=293bps ) -121dBm (FSK,Frequency deviation=5kHz, Bit Rate=1.2kbps) |
| Antenna Type | Build-in antenna |
| Communication Range | 10 km (line-of-sight, the actual transmission distance depends on the environment) |
| Data Transfer Rate | 0.3kbps～50kbps |
| Spread Technique | LoRa/FSK |
| Available Frequency | US915 AU915 AS923 EU868 KR920 CN470 Configured before shipment |
| Sensing Range – Mounting Height | 2 to 2.2 meters above ground level |
| Mounting Angle | Tilt 15° downward |
| Sensing Angle | Horizontal 110°, vertical 60° |
| Sensing Distance | 2 meters to 12 meters |
| Object Moving Speed to Send Alarm | ≥0.2 m(M)/s(s) |
| Temperature Measurement Range | -20°C ～ 55°C |
| Temperature Measurement Accuracy | ±2℃ |
| Light Sensor Measurement Range | 0-1100LUX |
| Light Sensor Measurement Accuracy | ±15% |
| Battery Measurement Accuracy | ±0.1V |
| Electric – Power Supply | 2pcs of 3.6V ER14505 AA battery, up to 2.5 years battery life* |
| Operating Voltage Range | 3V～3.6V |
| Standby Current | 110uA |
| Transmitting Current (max) | 120mA |
| Receiving Current (max) | 11mA |
| Battery Measurement Accuracy | ±0.1V |
| Dimensions | 78mm*78.8mm*82.2mm |
| Weight | 125.8g |
| Operating Humidity | ＜90%RH |
| Operating Temperature | -20°C ～ 55°C |
| Storage Temperature | -40°C ～ 85°C |
| Built-in Devices | Tamper switch, light sensor, temperature sensor |
Applications:
- Area access monitoring
- Detect when people enter a room
- Building automation
- Temperature and Light monitoring
- Predictive maintenance
*1. Actual range may vary depending on environment.
*2. Battery life is determined by sensor reporting frequency and other variables
