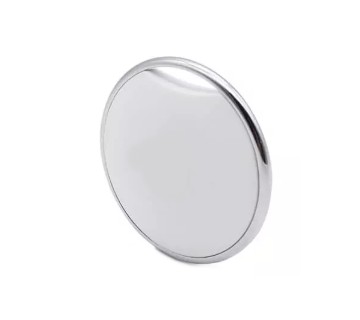

Trax10166-Disc Beacon
Trax10166 Disc Beacon advertises standard iBeacon and Eddystone (UID, URL, TLM) simultaneously. Also features easy to operate push button, which can be defined to advertise different data by clicks, Beacons could be used on the panic / emergency / SOS type of applications. The user can configure the Beacon via configuration application, it also can work with the BLE WiFi gateway for data management on system if needed.
Description
- Battery life up to 8 months with a 900ms 0dBm
- Battery model CR2025 and replaceable
- Low Energy Beacon 4.1and 5.0 compatible
- Supports iBeacon, Eddystone (UID, URL, TLM)
- Read range up to 50 meters
| Item | Aspect |
| BLE Beacon | Compatible BLE Beacon Standards 4.1 and 5.0 |
| Antenna | PCB antenna |
| Beacon Interval | From 100ms to 5000ms |
| Transmit Power | – 40dBm to 4dBm Configurable |
| Range | Up to 50 meters |
| Battery Model | One replaceable, CR2025 |
| Estimated Operational Life | 8 months with a 900ms 0dBm iBeacon interval |
| Environment Resistance | Indoor environment, shock resistant |
| Compatible Systems | iOS 7.0 or above, Android 4.3 or above |
| Protocols | iBeacon, Eddystone (UID, URL, TLM) |
| Color | White, Other colors can be customized |
| Dimensions | Diameter 35 x 8.2 mm |
| Weight | 7 g |
| Elegant Design | Portable with key chain hole |
| Key Fob Button | Programmable with 3 kinds of trigger click option |
| Customized | Option to print logo |
| Regulatory | iBeacon MFi License, CE, FCC, BLE QDID/EPL |
