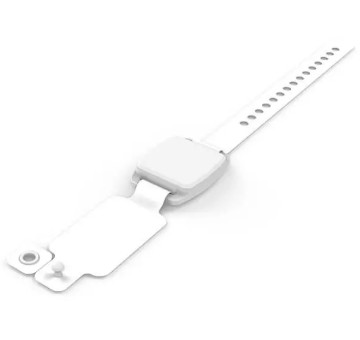

Trax10167-Detachable Wristband Beacon
Trax10167-Detachable Wristband Beacon advertises standard iBeacon and Eddystone (UID, URL, TLM) simultaneously. The wristband beacon is a BLE Standard 4.0 hardware platform. Wristband takes the design of magnet switch to turn on/off, waterproof grade up to IP66 is also available. Disposable detachable wristband can maximize recycling of the Beacons. It can be widely applied to personnel tracking, activity monitoring solutions in healthcare and industrial personnel safety access and security monitoring applications.
Description
- Battery life up to 8 months
- Battery model CR2032 and replaceable
- Low Energy Beacon 4.0 compatible
- Supports iBeacon, Eddystone (UID, URL, TLM)
- Read range up to 20 meters
| Item | Aspect |
| BLE Beacon Standard | BLE Beacon 4.0 |
| Antenna | PCB Antenna |
| Beacon Interval | Configurable 100ms to 10s |
| Transmit Power | -30dBm, -20dBm,-16dBm, -12dBm, |
| -8dBm, -4dBm,0dBm,4dBm | |
| Range | Up to 20 meters |
| Battery Model | CR2032 |
| Battery Capacity | 225mAh |
| Estimated Operational Life | 8 months by default |
| Operating Temperature | -20°C to +60°C (Battery limit) |
| Compatible Systems | Supports iOS & Android |
| Configuration modes | 0 Connectable, configuration mode; 1 Non-connectable, deployment mode |
| Color | White |
| Dimensions | 36.2*26.1*7.2mm |
| Weight | 7.0g |
| Material | ABS plastic housing |
| Wristband | Disposable detachable wristband |
| Waterproof grade | IP66 |
| Power on/off | Magnetic switch |
