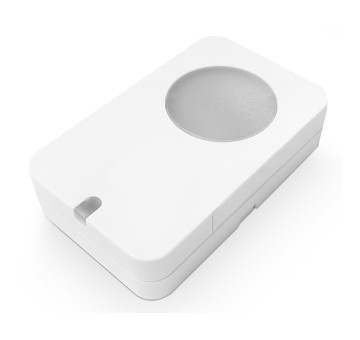

Trax10168-LoRaWAN Light Sensor
Trax10168 has a built-in photosensitive sensor and it’s used for detecting ambient light intensity. The wireless communication is based on LoRaWAN™ protocol (Class A). A light sensor which reports the light level periodically, working with other devices to perform wireless dimming functions and the wireless communication meets LoRa protocol standards and features low-power, long range, wireless sensor that can accurately detect environmental illuminance indoors.
Description
LoRaWAN Class A compatible, frequency hopping spread spectrum (FHSS), encrypt-RF™ security (Diffie-Hellman Key Exchange + AES-128 CBC for sensor data messages), capable of OTA updates.
- Wireless Range Of 10km *1
- Improved interference immunity
- Battery Life *2
- Improved power management for longer battery life
| Item | Aspect |
| Electric: | |
| Input Power | 2 x 3.0V CR2450 Batteries |
| Operating Power | DC 2.4V～3V |
| Standby Current | 12uA/3.0V |
| Transmitting Current (Max) | 120mA/3.0V |
| Receiving Current (Max) | 11mA/3.0V |
| Brightness Detecting Range | 1～3000LUX |
| Low Voltage Threshold | 2.4V |
| Voltage Measurement Accuracy | ±0.1V |
| Frequency: | |
| TX Power | 19dBm±1dBm |
| Rx Sensitivity | -136dBm (LoRa, Spreading Factor=12，Bit Rate=293bps ) |
| -121dBm (FSK, Frequency deviation=5kHz, Bit Rate=1.2kbps) | |
| Antenna Type | Built-in antenna |
| Communication Range | Up to 10 km, the actual transmission distance depends on the environment |
| Data Transfer Rate | 0.3kbps～50kbps |
| Spread Technique | LoRa/FSK |
| Available Frequency | EU863-870，US902-928，AU915-928, KR920-923， |
| AS923，CN470-510, configured before shipment | |
| Physical: | |
| Main Body Dimension | 57mm X 35mm X 15mm |
| Weight | 32.3g |
| Operating Temperature | -20℃ ～ 55℃ |
| Environment Humidity Range | <90% RH (No Condensation) |
| Storage Temperature | -40℃ ～ 85℃ |
