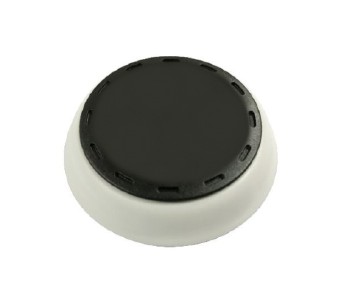

Trax10179-Asset Disc Quuppa Tag
Trax10179 Asset Disc Quuppa tag compatible with Quuppa protocol and eco-system, designed to full fill all requirements for asset tracking, logistics or predictive maintenance applications. Optimized and ultra-low power consumption, beacon guarantees un-surpassed battery lifetime with battery replaceable feature (CR2032). Its high precision accelerometer sensor permits to detect any movements, vibrations, shocks or a specific fall. The accelerometer parameters are configurable in order to adjust them to the final needs of the application.
Description
An optional temperature sensor enriches the overall functionalities, enabling capabilities for cold chain monitoring. All beacon configuration parameters can be updated over-the-air through a specific profile service. A secure operational mode is also available and based on an AES-128 crypto algorithm. An optional NFC function can be added in order to provide extra information on the asset (Manual, Last date of maintenance, Location) and/or easy pairing function.
| Item | Aspect |
| Operating Frequency | BLE 2.45 GHz and optional (NFC)13.56 MHz |
| Technology | Quuppa ready, full compatible |
| NFC optional | ISO/IEC15693 (NFC Type 5), ISO/IEC14443 (NFC Type 2) |
| Battery | CR2032, replaceable |
| Battery Life | Up to 3 years depending on Quuppa parameters |
| Reading Range | Up to 75 meters (BLE), 10 cm (NFC), Line of Sight up to 200 meters |
| Sensor – Accelerometer | User-selectable full scales of ±2g/±4g/±8g/±16g |
| Sensor – Temperature | 0.8 °C (typ. accuracy) with ODRs ranging from 50 to 1.6 Hz |
| Dimensions | Diameter 45.00 mm x Thickness 11.00 mm |
| Color | Outer ring white, Center is black (Option: Transparent PC top cover) |
| Material | TPE, PC with base Industrial adhesive |
| Operating Temp | -30°C to +60°C or -22°F to +140°F |
| Storage Temp | -30°C to +60°C or -22°F to +140°F |
| IP Rating | IP67 (1m, 24h) |
| Environmental | Saltwater, salt mist, acetic acid water, carbonated sodium water, |
| Chemical properties | sugared water, ethylene glycol, humidity 95% (50°C, 24h) |
| Optional | NFC, Sensors Accelerometer and Temperature |
| Certificates | BLE, CE, FCC, ISED, RoHS, Quuppa & Reach |
| Standard version | Adhesive Beacon |
| Trax10179 Option-2 | Adhesive Beacon with Accelerometer, NFC (Type 5) |
| Trax10179 Option-3 | Adhesive Beacon with Accelerometer and Temperature |
| Trax10179 Option-4 | Adhesive Beacon, Accelerometer and Temperature, NFC (Type 5) |
| Trax10179 Option-5 | Custom – sensor, offset printing, ID#, logo, laser engraving, QR code |
Applications:
- Asset Tracking
- Logistics
- Predictive Maintenance and
- Inventory Control
