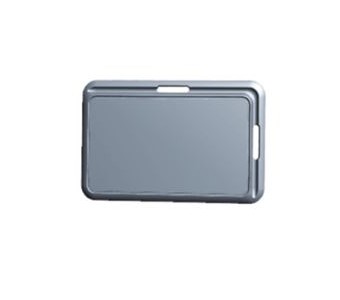

Trax10181- ID Badge Quuppa Tag

Trax10181 ID Badge is compatible with Quuppa protocol and eco-system, its designed for people tracking and location management and secure access control use cases. Its high precision accelerometer sensor permits to detect any movements, vibrations, shocks or a specific fall. The accelerometer parameters are configurable in order to adjust them to the final needs of the application.

SKU: Trax10181- ID Badge Quuppa Tag Category:

Description

An optional temperature sensor enriches the overall functionalities of the beacon allowing precision monitoring. All tag configuration parameters can be updated over-the-air through Quuppa back-channel commands. An optional NFC function can be added in order to provide extra to provide extra functionalities as registration, access control or micro-payments.

ItemAspect
Operating FrequencyBLE 2.45 GHz and optional (NFC)13.56 MHz
TechnologyQuuppa ready, fully compatible
NFC optionalISO/IEC15693 (NFC Type 5), ISO/IEC14443 (NFC Type 2)
BatteryCR2016
Battery LifeUp to 2 years depending on beacon parameters
Reading RangeUp to 75 meters (Quuppa), 10 cm (NFC), Line of Sight up to 200 meters
AccelerometerUser-selectable full scales of ±2g/±4g/±8g/±16g
Sensor – Temperature0.8 °C (typ. accuracy) with ODRs ranging from 50 to 1.6 Hz
DimensionsLength 85.60mm x Width 54.00 mm x Thickness 5.00mm
ColorGrey, White
MaterialABS housing & PVC
Operating Temp -35°C to +50°C or   -31°F to +122°F
Storage Temp -35°C to +50°C or   -31°F to +122°F
IP RatingIP68
CertificatesBLE, CE, FCC, ISED, RoHS, Quuppa & Reach
Standard versionBeacon
Trax10181 Option-2Beacon with Accelerometer, NFC (Type 5)
Trax10181 Option-3Beacon with Accelerometer and Temperature
Trax10181 Option-4Beacon, Accelerometer and Temperature, NFC (Type 5)
Trax10181 Option-5Custom – sensor, offset printing, ID#, logo

Applications:

  • Access control
  • Event Management
  • People Tracking & Locating
  • Patient monitoring
  • Employee & visitor management
