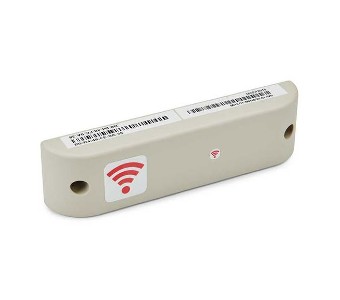

Trax10192-Outdoor IP67 BLE Beacon
Trax10192 Outdoor IP67 BLE Beacon is fully compatible with BLE Beacon 4.1 standard and supports iBeacon. Industrial BLE Beacon is built for extreme harsh environmental conditions and has a powerful battery that ensures long operating life. BLE beacon is waterproof, UV and shock resistant. Device is completely sealed and it includes Non-replaceable Lithium Magnesium batteries which is designed to last for 3 -5 years depending the beacon broadcast mode.
Description
Beacon operates in conjunction with commercial Android/iOS devices or custom devices to form the foundation of easily deployable proximity-based location solutions.
| Item | Aspect |
| BLE Beacon Standard | BLE Beacon Standard 4.1 |
| Frequency | 2.45GHz |
| BLE Beacon Security | 128-bit AES |
| BLE compatibility | iBeacon, iOS & Android devices |
| Beacon Interval | Configurable 100 ms |
| Dimensions | 7″ x 1.875″ X 1″ (177.8mm x 47.63mm x 25.4mm) |
| Weight | 143 gms |
| Battery | Non-replaceable Lithium Magnesium |
| Estimated Life | iBeacon Mode: 3 yrs @ 100 ms |
| Transmit Power | -10 dBm to -31 dBm (EIRP) Configurable in 1dB step |
| Antenna Type | Directional antenna with 160-degree beam width / Down tilt |
| Installation Options | Industrial tape, Screws |
| On / Off Switch | Touchpad controller with LED indicator, |
| Touch pad controller temp | 0° C to 60° C |
| Operating temperature | -40° F to140° F / -40° C to 60° C |
| LED | Single LED with blink patterns represents various modes of operation |
| IP Rating | IP67 (Waterproof) |
| Environmental Resistance | UV and Shock resistant |
| Regulatory | EMI/EMC (FCC), safety (UL) |
Applications:
- Outdoor localization for Asset tracking
- Inventory management
- Logistics control
- Warehouse control
- Material tracking
