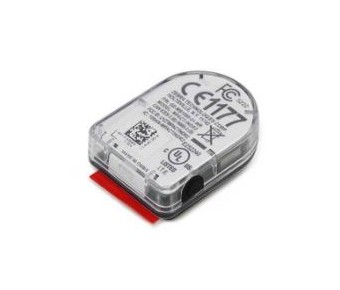

Trax10191-Medical Grade BLE Beacon
Trax10191 Medical Grade BLE Beacon with BLE Standard 4.1 standard. Medical safe Beacons are built upon BLE Beacon technology and operate in conjunction with commercial Android/iOS devices or custom devices to form the foundation of easily deployable proximity-based location solutions. Beacon is constructed of materials that withstand common industrial cleaning agents and easily mounted with included industrial tape or using lanyard available as an option.
Description
BLE Beacon has small coin cell beacons that are ideal for asset tracking in all forms and have been optimized for long battery life within industrial environments. They have ultra-low RF transmit powers for increased locate accuracy and improved performance in high density deployments.
| Item | Aspect |
| BLE Beacon Standards | BLE Standard 4.1 |
| Frequency | 2.45GHz |
| BLE Beacon Security | 128-bit AES |
| BLE compatible | iBeacon |
| Beacon Interval | Configurable 100 ms to 10 sec |
| Dimensions | 1.81(46mm) X 1.06 (27mm) x 0.52″(131.1mm) with adhesive tape |
| Weight | 8g |
| Battery | Fixed CR2032 220mAh |
| Estimated Life | 2 years with a 2sec beacon interval |
| Transmit Power | -10 dBm to -33 dBm (EIRP) Configurable in 1dB steps |
| Antenna Type | Omni Directional |
| Installation Options | Pre-installed 3M VHB industrial tape |
| On / Off Switch | Integrated and sealed on/off switch; Single LED with blink patterns for status |
| Operating temperature | 32° F to 104° F / 0° C to 40° C |
| LED | Single LED with blink patterns for status |
| Cleaning | Tested for a lifetime of cleaning with 15 common cleaning agents |
| Compliance | EMI/EMC(FCC/EU), Safety (UL) and Medical EMC (IEC 60601-1-2) |
| Standard version | BLE Beacon with adhesive tape |
| Trax10191 Option-2 | BLE Beacon with Lanyard accessory available |
Applications:
- Indoor Localization for Healthcare
- Lone worker protection
- Physical access control
- Manufacturing access control
- People Tracking & Locating
- Contractor & visitor management
