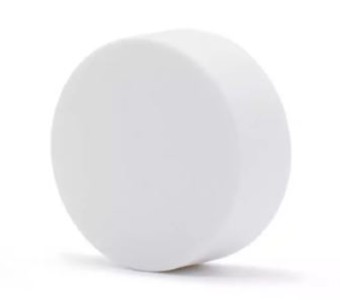

Trax10209-Asset Disc BLE Beacon
Trax10209 Asset Disc is used for location monitoring, uses BLE Beacon Standard 5.0, iBeacon with stable RSSI signal specially used in indoor location and tracking applications. It is compatible with both iBeacon and Eddystone protocol.
Description
With a smart rotatable mechanical design for the case, it is easy to install and advertise iBeacon & Eddystone
(URL, TLM, UID) Simultaneously. Parameters can be configured via Beacon APP. Using 2pcs ER14250 battery, provide super long battery life.
| Item | Aspect |
| Operating Frequency | BLE 2.45 GHz |
| BLE Beacon Compatibility | iBeacon & Eddystone |
| BLE Standards | BLE Beacon Standard 5.0 |
| Chip | nRF52 series |
| Antenna | PCB Antenna |
| Transmit interval | From 100ms to 5000ms |
| Transmit Power | -40dBm, -20dBm, -16dBm ,-12dBm, -8dBm, -4dBm, 0dBm, 4dBm |
| Battery | ER14250, |
| Capacity | 2400mAh |
| Battery Life | Up to 2.5 years |
| Battery replaceable | Yes |
| Reading Range | Up to 100 meters depends on environment conditions |
| IP Rated | IP65 Waterproof grade |
| Dimensions | Diameter 50mm x 20.5mm |
| Color | White |
| Material | ABS plastic housing |
| Operating Temp | -40℃~+70℃ |
| Weight | 39.5g |
| Installation | Double sided adhesive |
| Certificates | CE, FCC, BLE Beacon Standards QDID/EPL, |
Applications:
- Outdoor localization for Asset tracking
- Tracking and Location management
- Logistics control
- Warehouse control
- Material tracking
