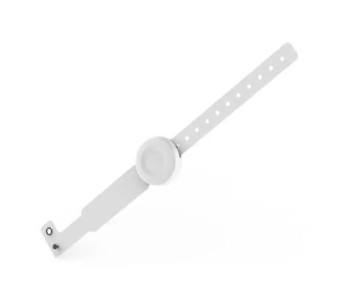

Trax10214- BLE with NFC Wristband Beacon
Trax10214 – BLE with NFC Wristband Beacon advertises standard iBeacon and Eddystone (UID, URL, TLM) simultaneously. The wristband beacon is a new generation beacon with push button for hospital patients, personnel positioning and emergency call. The thread-fixed structure makes it waterproof grade up to IP66. The wristband is equipped with 13.56MHz NFC tag.
Description
The wristband beacon supports BLE Beacon Standard 5.0 hardware platform. Wristband based on nRF52 chip. Disposable detachable wristband, with replaceable battery option. It can be widely applied to personnel tracking, activity monitoring solutions in healthcare and industrial personnel safety access and security monitoring applications.
| Item | Aspect |
| BLE Beacon Standard | BLE 5.0 |
| Antenna | PCB Antenna |
| Beacon Interval | Configurable 100ms to 10s |
| Transmit Power | -40dBm, -20dBm,-16dBm, -12dBm, |
| -8dBm, -4dBm,0dBm,4dBm | |
| Range | Up to 60 meters |
| Advertising interval | From 100ms to 5000ms |
| Battery Model | CR2032 |
| Battery Capacity | 225mAh |
| Estimated Operational Life | 12 months by default |
| Operating Temperature | -20°C to +60°C (Battery limit) |
| Compatible Systems | Supports iOS & Android |
| Configuration modes | 0 Connectable, configuration mode; 1 Non-connectable, deployment mode |
| Color | White |
| Dimensions | Dia 35.9*11mm |
| Weight | 12.0g |
| Material | ABS plastic housing |
| Wristband | Disposable detachable wristband |
| Waterproof grade | IP66 |
| Push button | Included, for Emergency call or SoS |
