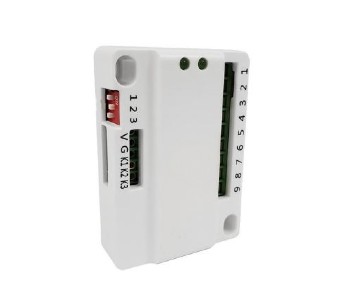

Trax10212-LoRaWAN Wireless Relay Controller
Trax10212 LoRaWAN Wireless Relay Controller is a Multi functional Control Box device for Class C type devices based on the LoRaWAN open protocol and is compatible with the LoRa protocol. Designed to control switch devices, mainly for electrical appliances, allows you to connect and control 3 relay switches and 3 dry contacts. The connected relays and dry contacts will not affect each other. It will report 3 relay status and 3 input status individually.
Description
Trax10212 can be used for long-distance and low-data wireless communications. For example, automatic meter reading, building automation equipment, wireless security systems, industrial monitoring. Controller features low power consumption, long transmission distance, strong anti-interference and frequency hopping spread spectrum capability.
| Item | Aspect |
| Electric: | |
| Work electric voltage | DC 12V / 1A |
| Work Current | 20mA(12V)Relay does not operate and no data transfer） |
| Relay Load Characteristics | AC250V/5A、DC30V/5A (contact load) |
| Relay Power Consumption | 300mW |
| Relay Type | Magnetic Latching Relay |
| Relay Model | HFE60/5-1HSTGL2R |
| Frequency: | |
| Frequency Range | 863MHz-928MHz 470MHz-510MHz |
| TX Power | US915 20dbm； |
| AS923 16dbm； | |
| AU915 20dbm； | |
| CN470 19.15dbm； | |
| EU868 16dbm； | |
| KR920 14dbm； | |
| IN865 20dbm； | |
| Receiving Sensitivity | -136dBm（LoRa，Spreading Factor=12，Bit Rate=293bps )； |
| -121dBm (FSK,Frequency deviation=5kHz, Bit Rate=1.2kbps) | |
| Antenna Type | Built-in antenna |
| Communication Distance | Up to 10 km |
| (visible linear obstacle-free transmission distance, actual transmission distance depends on the environment) | |
| Data Transfer Rate | 0.3kbps～50kbps |
| Modulation | LoRa/FSK (Note: You can choose one of them) |
| Supportable LoRaWAN Band | EU863-870,US902-928,AU915-928,KR920-923,AS923-1,AS923-2,AS923-3, |
| IN865-867,CN470-510 | |
| (Note: The frequency band is optional and needs to be configured before shipment) | |
| Physical: | |
| Size | 66mm x 47mm x 20.3 mm |
| Working Temperature | -20°C ～ 55°C |
| Ambient Humidity Range | ＜90% RH（no condense） |
| Storage Temperature Range | -40°C ～ 85°C |
Applications
- Power Management
- Remote Machine Monitoring
- Automation Industry
- Smart Switches
