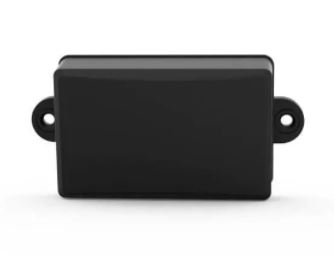

Trax10215- Rugged Long Battery BLE Beacon
Trax10215 – BLE Beacon is rugged with Long Battery Life, Beacon is loaded with BLE Beacons Standard 5.0, hardware platform based on nrf52 chip. IP66 waterproof grade, Beacon is designed to have read range of up to 200 meters in open environments. It simultaneously supports multiple protocols iBeacon and Eddystone (UID, URL, TLM), can be easily configured.
Description
Trax10215 BLE Beacon designed for indoor and outdoor industrial applications, Beacon can be attached to any asset, equipment, and vehicle securely, built with flexible installation options.
| Item | Aspect |
| BLE Beacon Standards | BLE Beacons 5.0 compatible |
| Antenna | PCB Antenna |
| Chipset | nRF52 |
| Transmit Power | -40dBm, -20dBm, -16dBm, -12dBm, -8dBm, -4dBm, 0dBm, 4dBm |
| Range | Up to 200 meters in open environment |
| Advertising interval | 100ms to 5000ms |
| Battery Model | 2 x AA (LR6) (Not included with supply) |
| Battery Capacity | 2200mAh |
| Estimated Operational Life | (Tx=0dBm; Interval: 900ms), Up to 5 years |
| Operating Temperature | -20°C to +70°C (Battery limit) |
| Compatible Systems | iBeacon, Eddystone |
| Configuration modes | App available to modify configuration |
| Color | Black, (Optional – White MoQ) |
| Dimensions | 72 x 45 x 22mm |
| Weight | 50g |
| Material | ABS plastic housing |
| Waterproof grade | IP66 waterproof grade |
| Mounting | Screws mounting and double-sided adhesive |
| Certification | CE, FCC, BLE Beacon Standards, QDID/EPL |
| Accessories | 1pc double-sided adhesive, 2pcs screws and 2pcs plastic holders |
