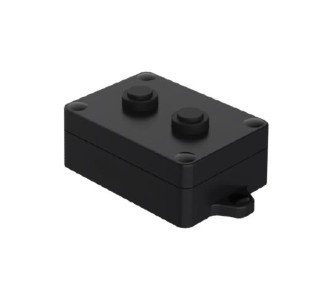

Trax10236 LoRaWAN Waste Bin Ultrasonic Sensor
Trax10236 LoRaWAN Waste Bin Ultrasonic Sensor is mainly for the detection of waste bin and other container’s fill level. With a compact size and wide measure range Trax10236 can be installed to any types of waste bins or containers to monitor solid or liquid level. Besides, LoRaWAN sensor equipped with 3-axis accelerometer to detect the status of container cover. LoRaWAN Waste Bin Sensor is compatible with industry standard LoRaWAN gateways.
Description
Trax10236 Waste Bin LoRaWAN sensor has dual ultrasonic sensor beams, measures from 3cm up to 450cm, thus has ultra short blind zone. Users can receive container status and fill-in level in real-time. LoRaWAN Waste Bin sensor can be widely used in waste management, water tank monitoring, smart manhole cover monitoring type of applications. Simple and easy to use, configure your device via NFC. Built with IP67 waterproof enclosure for harsh environments.
| Item | Aspect |
| Wireless Transmission | Compliant with LoRaWAN Gateways and Network servers |
| Frequency | CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923 |
| Tx Power | 16 dBm (868 MHz)/22dBm (915 MHz)/19dBm (470 MHz) |
| Sensitivity | -137dBm @300bps |
| Mode | OTAA/ABP Class A |
| Transmission range | 2 Km Urban areas to 15 km rural areas, based on Gateways capabilities |
| Measurement | |
| Range | 3 – 450 cm |
| Accuracy | ± (1+0.3%*S) cm, S=distance |
| Resolution | 1 mm |
| Operation | |
| Power On & Off | NFC, power button (Internal) |
| Configuration | Mobile APP(via NFC) |
| Physical Characteristics | |
| Power Supply | 2 × 3500 mAh ER17505 Li-SOCl2 battery |
| Battery Life* | Up to 10 years (10 min interval + 20 triggers per day) |
| Operating Temperature | -15°C to +60°C |
| Relative Humidity | ≤90% (non-condensing) |
| Ingress Protection | IP67 |
| Dimension | 111 × 62 × 40 mm (4.37 × 2.44 × 1.57 in) |
| Installation | Mounting holes, Flat surface mounts |
| Weight | 168g |
| Material & Color | ABS, Black |
| Approvals | |
| Regulatory | CE, FCC, LoRaWAN Certified |
Applications:
- Waste Bin Monitoring
- Manhole Cover Management
- Water level monitoring
- Level/depth monitoring in tanks
