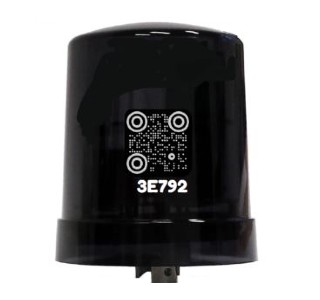

Trax10237-LoRaWAN Street Light Controller NEMA
Trax10237 LoRaWAN Street Light Controller NEMA is the most advanced street light automation solution on the market. It works on LoRa protocols, that makes it a plug and play solution for customers. Smart street light controller NEMA individually controls each lamp helps prevent energy wastage by dimming/scheduling. Secure and tamper proof device, drastically reduces the turnaround time for repair and maintenance.
Description
Trax10237 LoRaWAN is a Smart Street Light Controller with NEMA socket that reports its failure without dependence on any external service is the need of the hour. These lights help save tonnes of carbon emissions by dimming the lights in non-peak hours or based on inputs from sensors. LoRa based control applications can be designed for maintaining street lighting.
| Item | Aspect |
| Wireless Transmission | Compliant with LoRaWAN Gateways and Network servers |
| Frequency | LoRaWAN IN865/EU868/US915 |
| Over The Air Updates | Compatible |
| Security | 2 levels (Network and Application) |
| Device Outputs/ Loads configurable | Up to 400W (On / Off / Dimming) |
| Voltage | 90V AC to 300V AC |
| Consumption | <2.5 Watt |
| Dimming (onboard) | 0-10V & 1-10V |
| Surge Protection | 4KV |
| Dimming | Analog (10 Levels) |
| IP Rating | IP66 |
| Mounting | NEMA |
| Temperature | -40 to +85 |
| Material | Polycarbonate (PC) |
| Radio Protocol | LoRaWAN |
| Receiver Sensitivity (dBm) | -126 |
| Transmit Power(dBm) | 18.5 |
| Metrology Engine | 32-bit ARM processor |
| Main App Engine | 32-bit ARM processor |
| Antenna Type | SMA Antenna Internal |
| Regulatory | RF, CE, WPC(ETA) LoRaWAN Certified |
Applications:
- Street Light Monitoring
- Light Management
- Smart City Applications
