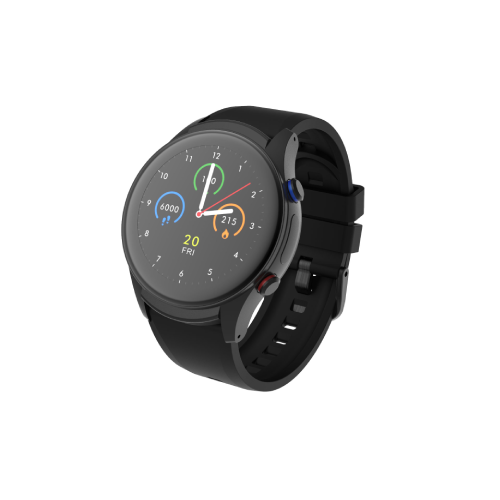

Trax10266 GPS Wristband with 2 Way Calling BLE Beacon
The device supports various 4G bands and will automatically fall back to 3G or 2G networks when there is no 4G coverage available. The device monitors the wearer’s heart rate and alerts caregivers if abnormal values are detected. Live Tracking Automatic GPS, WiFi, Beacon, and LBS location updates every 10 seconds when the SOS button is activated for real-time tracking. Make calls using the SOS or Call 1 button, and receive calls from anyone or authorized contacts. Easily activate the SOS alarm with a single button press for quick assistance. With BLE beacon feature for indoor monitoring and geo fence capabilities.
Description
FEATURES
- 4G
- SOS
- Two-Way Telephone
- GPS Positioning
- Heart Rate
- Blood Pressure Oxygen
- Body Temperature
Specification
| ITEM | ASPECT |
| Highlights:
| Dual CPU design with 4G, BLE, and multiple sensors for power efficiency during health data collection. Large, high-resolution touch LCD: 1.43 inch with 466*466 resolution AMOLED. High performance and power-saving features: 1GHz CPU and 1GB DDR RAM running on RTOS. Global roaming capabilities: Supports 2G, 3G, 4G, and Wi-Fi, covering 130+ countries and 200+ carriers. Comprehensive health monitoring with dual-color optical lens: PPG, ECG, and SPO2 sensors. |
| Connectivity | |
| Bluetooth Version | BLE 5.0 (Chip: GR5515) |
| Wi-Fi | Supports 2.4G Wi-Fi for indoor location and connection |
| Display | |
| LCD Size | 1.43 inch |
| Resolution | 466*466 AMOLED |
| Waterproof Rating | IP67 |
| Operating Systems | |
| Watch OS | Mocor (RTOS) |
| App OS | Android 4.4 and above / iOS 7.0 and above |
| Chipset: | Unisoc W307 with Cortex A53 1GHz and GR5515 (BLE chip as sensor hub) |
| GPS | |
| Modes | GPS only, BDS only, GPS+BDS, GPS+GLONASS |
| Antenna | LDS |
| Communication | GSM Antenna: LDS |
| Frequency Bands | |
| GSM | 900, 1800 |
| 3G WCDMA | Band 1, Band 8 |
| 4G FDD | B1, B3, B7, B8, B20, B38, B40, B41 |
| SIM Card | Nano (compatible with e-SIM) |
| Sensors | |
| Heart Rate Sensor | PAH8009 |
| Blood Pressure Sensor | Included |
| SPO2 Sensor | Included |
| ECG | TI 1291 (Optional) |
| 3D Accelerator | BOSCH 456 |
| Storage | |
| SIP 1GB NAND + 1GB LPDDR2 Over-The-Air (OTA) Support | yes |
| Charging | |
| Charge Port | Magnetic 4 pin |
| Buttons | One SOS key, one power-on On key |
| Dimensions | |
| Size | D45mm x T13.2mm |
| Weight | 58g |
| Color Options | Available in Black |
| Battery | |
| Type | Lithium Polymer |
| Capacity | 650 mAh |
| Usage | |
| Very Frequent Use | About 2-3 days |
| Normal Use | About 3-4 days |
| Standby Time | About 4-5 days |
| App Functions | |
| Key Features
| Steps Counting, GPS Positioning, 2-Way Call, SOS Alarm, Geo-fence, Heart Rate/Blood Pressure/SPO2/ECG(Optional) |
| Platforms | Web, Mobile App, or SMS |
| Alarm Messages | Low Battery, SOS, Geo-fence Alerts |
| Materials | |
| Watch Case: | PC + ABS + Ceramics |
| Button | 316L Stainless Steel |
| Strap | 22mm Sport Strap (Silicone) |
| Strap Buckle | 316L Stainless Steel |
| Feature |
|
