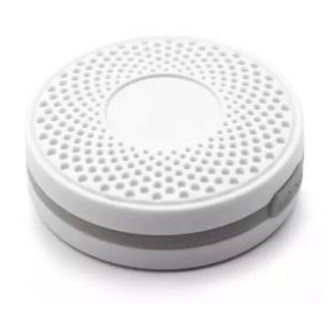

Trax10120-Disc
Trax10120 Disc is loaded with BLE standard 5.0 hardware platform based on nrf52 chip. It simultaneously supports multiple protocols iBeacon and Eddystone (UID, URL, TLM), can be configured easily. Disc Beacon has an external ON/OFF push button with multiple functions. For example, it can be used as trigger to activate beacon to advertise different data by one click, double-click and triple-click. As an option accelerometer sensor data available
Description
- Programmed standard iBeacon firmware
- Portable with external ON/OFF push button
- Ultra-low power consumption chip set nRF52 series
- Easy to print a customization Logo/branding on the case or the button
| Item | Aspect | Comments |
| Protocol | iBeacon, Eddystone | (UID, URL, TLM) |
| Chipset | nRF52 | |
| On/Off Button | External push button | Different advertisement mode |
| Sensor | Accelerometer Sensor | Optional |
| Standard | Bluetooth low energy 5.0 compatible | |
| Transmit Interval | From 100ms to 5000ms | |
| Battery | CR2477 | Coin battery, 1pc, 1100mAh |
| Battery life | Up to 2 years | (Tx=0dBm; Interval: 900ms) |
| IP Rating | IP65 waterproof grade | |
| Operating Temperature | -20°C to +70°C (Battery limit) | On board/PCB Antenna/Ceramic Antenna |
| Transmission Power | -40dBm, -20dBm, -16dBm, -12dBm | -8dBm, -4dBm, 0dBm, 4dBm |
| Range | Up to 50 meters | |
| Material | ABS plastic housing | |
| Dimensions | Diameter 50mm x 15mm | |
| Weight | 80g | with Battery |
| Color | White | |
| Accessories | 1pc double-sided adhesive | |
| Product Compliance | CE, FCC, BLE Beacon Standards QDID/EPL |
