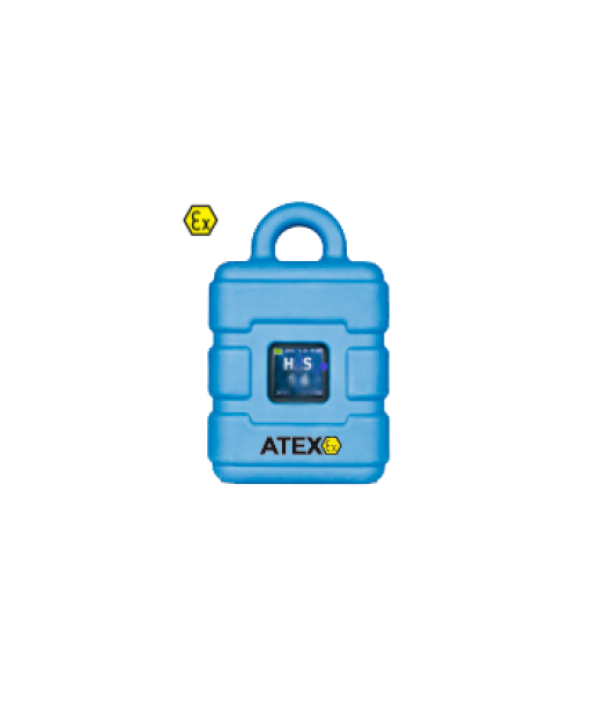

Trax20207-ATEX BLE Beacon Gateway
- Trax20207 is ATEX certified for zone1 Bluetooth BLE Gateway
- BLE Gateway receives data from all sensors that transmit data via Bluetooth
- ATEX Bluetooth BLE Gateway with read ranges up to 20meters
- Built-in battery has up to 36 months lifetime (depending on the adjustable transmission interval)
- Colour display for rapid reading of the current sensor values on site, screen size 1,5″ OLED Display
- Robust housing with excellent chemical resistance and rubber casing
Description
- Programmable via PAWN script (similar to C)
- Adjustable BLE Gateway exactly to your custom specific application
- Integration available with API
- Energy efficient operations handled by gateway
- Data Transmission via GSM (3G) available as an option
- Device can include 3G module (EU, US & Canada) other countries available
- Fields of application, Harsh Industrial plants, sewage systems & waste water systems
- Industry applications that require continuous monitoring of sensitive data like temperature & humidity
| Item | Aspect |
| BLE Signal Quality | -50dBm … -110dBm |
| Ex certification | Ex II 2G Ex ib IIB T3 Gb , Zone 1 |
| Protection class | Complete system: IP66 Gateway: IP66 / IP68 / IP69Sensor: IP66 IP68 at max. immersion depth 1m for max. 5h |
| Temperature measurement range | -20…+50°C |
| Operating temp | -20…+50°C |
| Storage and transport temperature | -20…+50°C |
| Air humidity | Internal Air Humidity: 0…100% rH |
| Pressure range | Atmospheric +/-10% |
| Life cycle of the H2S sensor | 2 years in the air |
| Power supply | Built-in Battery, up to 36 months lifetime (depending on the adjustable transmission interval) Battery SOC (State of Charge): 0 … 100% |
| Data memory | 82.776 measurement cycles |
| Dimensions (WHD) | 106 x 169 x 61mm |
| Weight | 690g |
| Transmission | Bluetooth Low Energy Range of prox..20m |
| Displays | 1,5” OLED Display, Resolution 128 x 128 |
| Optional – Sensor modules (H2S 7H Sensor module) H2S measurement range | 0-200ppm; max. 1000ppm 0,25ppm resolution 1% repeat accuracy |
| Add on accessories | Flat antenna Smart Disc Multi Band FME-F 2m BLE Gateway MDN Protection casing MDN Magnet |
| Housing | Material: Noryl GTX 973 / PC |
