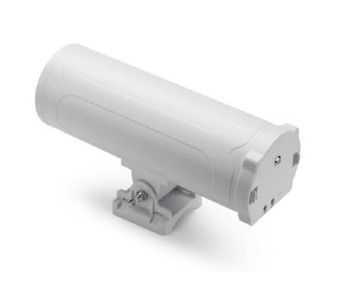

Trax20221-LoRaWAN Outdoor 4G Gateway
Trax20221 is an open source outdoor LoRaWAN multichannel 4G gateway, It lets you bridge LoRa wireless network to an IP network via WiFi, Ethernet, 3G or 4G cellular. The LoRa wireless allows users to send data and reach extremely long ranges at low data-rates. Uses Semtech packet forwarder and fully compatible with LoRaWAN protocol. It includes an SX1301 LoRaWAN concentrator, which provides 10 programmable parallel demodulation paths.
Description
Trax20221 LoRaWAN Outdoor Gateway has pre-configured standard LoRaWAN frequency bands to use for different countries. User can also customize the frequency bands to use in their own LoRaWAN network. Gateway can communicate with ABP LoRaWAN end node without LoRaWAN server. The system integrators can use it to integrate with their existing IoT Service without set up own LoRaWAN server or use 3rd party LoRaWAN service.
Specifications:
| Hardware System | LoRa Spec |
| Linux part: 400Mhz ar9331 processor | Up to -140 dBm sensitivity with SX1257 Tx/Rx front-end |
| 64MB RAM | 70 dB CW interferer rejection at 1 MHz offset |
| 16MB Flash | Able to operate with negative SNR, CCR up to 9dB |
| Interface: | Emulates 49 x LoRa demodulators and 1 x (G)FSK demodulator |
| 10M/100M RJ45 Ports x 1 | Dual digital TX & RX radio front-end interfaces |
| WiFi : 802.11 b/g/n | 10 programmable parallel demodulation paths |
| LoRaWAN Wireless | Dynamic data-rate (DDR) adaptation |
| Power Input: 12 ~ 24 V DC, 1 A | True antenna diversity or simultaneous dual-band operation |
| IEEE 802.3 af compliant | Features: |
| PoE port (DC 37 ~ 57 v) | Open Source OpenWrt system |
| USB 2.0 host connector x 1 | Managed by Web GUI, SSH via LAN or WiFi |
| Mini-PCI E connector x 1 | Emulates 49x LoRa demodulators |
| 1x SX1301 + 2 x SX1257 | Outdoor LoRaWAN Gateway |
| WiFi Spec: | 10 programmable parallel demodulation paths |
| IEEE 802.11 b/g/ | LoRaWAN packet filtering |
| Frequency Band: 2.4 ~ 2.462GHz | Far seeing LED indicator |
| Tx power: | Built-in GPS module for location & timing |
| 11n tx power : mcs7/15: 11db mcs0 : 17db | External fiber glass antenna |
| 11b tx power: 18db | 802.3af PoE |
| 11g 54M tx power: 12db | IP65 |
| 11g 6M tx power: 18db | Lighting Protection |
| Wifi Sensitivity : | Power Consumption:12v 300 ~500mA |
| 11g 54M : -71dbm | Power over Ethernet: |
| 11n 20M : -67dbm | IEEE 802.3af compliant |
| Cellular 4G LTE (optional): | Support wide input voltage range 37Vdc to 57Vdc |
| Quectel: EC25 LTE module | Thermal cut off |
| Standard Size SIM Slot | Short circuit protection |
| 2 x 4G Sticker Antenna. | Over current protection |
| Up to 150Mbps downlink and 50Mbps uplink data rates | Isolation level 4 KVrms |
| Worldwide LTE, UMTS/HSPA+ and GSM/GPRS/EDGE coverage | Enhanced surge protection |
| Frequency Band: | SMA connector for LoRa Antenna |
| 868: For EU868, RUS864, IN865 | Max output power: 27ddBm |
| 915: For US915,AU915,AS923,KR920 |
Applications:
- Smart Buildings
- Logistics and Supply Chain Management
- Smart Metering
- Fleet Management
- Smart Cities
- Smart Agriculture
- Industrial Automation
