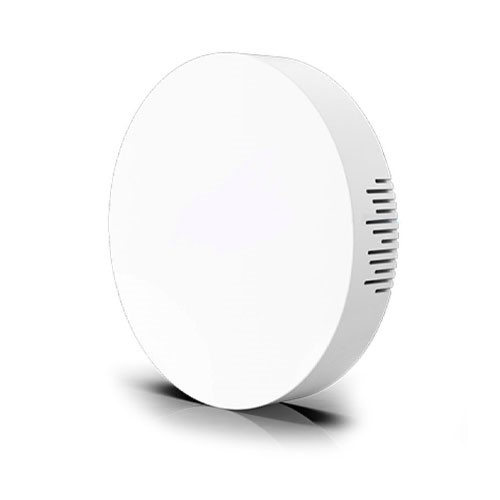

Trax20239 Indoor Desktop LoRaWAN Gateway
Trax20239 Indoor Desktop LoRaWAN Gateway. Adopting, SX1302 chip and high-performance CPU, Trax20239 Indoor Desktop LoRaWAN Gateway can not only set up packet forwarding connection between more than 2000 end nodes and mainstream network servers (such as TTN, Chirpstack, etc.), but also cover up to 2 km in urbanized environment as a blind-filling gateway. With compact size, it is an ideal supplement for Trax20239 Indoor Desktop LoRaWAN Gateway for blind-filling in complex environment or wide indoor areas such as office, parking lots, campuses, etc. Besides, Trax20239 Indoor Desktop LoRaWAN Gateway also has built-in network server and is compatible with IoT for dealing with data for a few end-nodes, suitable for LoRaWAN® small deployments.
Description
FEATURES
- High Performance NXP industrial processor and SX1302 chip
- 8 half/full-duplex channels
- Support Listen Before Talk (LBT) for downlink
- Small in size for easy carrying & deployment
- Desktop, wall or ceiling mounting support
- Cover the blind spot of LoRaWAN® network by transmitting data to Trac20119/ Trac20121/ Trac20122controller gateway
- DeviceHub & IoT Cloud provide easy and centralized management of remote devices
- Enable security communication with multiple VPNs like IPsec/OpenVPN/L2TP/PPTP/DMVPN
- Compatible with mainstream network servers like The Things Industries, ChirpStack, etc.
- Built-in network server and MQTT/HTTP/HTTPS API for easily integration
Specification
| ITEM | ASPECT |
| Hardware System | |
| CPU | 528 MHz, ARM Cortex-A7 |
| Memory | 256 MB DDR4 RAM |
| Flash | 4 GB eMMC |
| LoRaWAN | |
| Antenna | 2 × Internal Antennas |
| Channel | 8 (Half/Full-duplex) |
| Frequency Band | CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4 |
| Sensitivity | -140dBm Sensitivity @292bps |
| Output Power | 27dBm Max |
| Protocol | V1.0 Class A/Class B/Class C and V1.0.2 Class A/Class B/Class C |
| LBT | Support |
| Ethernet Interface | |
| Port | 1 × RJ45 (PoE PD supported) |
| Physical Layer | 10/100 Base-T (IEEE 802.3) |
| Data Rate | 10/100 Mbps (Auto-Sensing) |
| Interface | Auto MDI/MDIX |
| Mode | Full or Half Duplex (Auto-Sensing) |
| Others | |
| Reset Button | 1 × RST |
| Console Port | 1 × Type-C |
| LED Indicator | 1 × SYS, 1 × LoRa |
| Built-in | Watchdog, RTC,Timer |
| Software | |
| Network Protocols | PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, DDNS, HTTP, HTTPS, DNS, ARP, SNTP, Telnet, SSH, MQTT, etc. |
| VPN Tunnel | OpenVPN/IPsec/PPTP/L2TP/GRE/DMVPN |
| Management | Web, CLI, DeviceHub, IoT Cloud |
| Power Supply and Consumption | |
| Power Input | 1. 1 × 802.3af standard PoE input 2. 5V by Type-C Port |
| Power Consumption | Max 3.3 W |
| Physical Characteristics | |
| Ingress Protection | IP30 |
| Dimensions | Ф 115 x 21 mm (Ф 4.52*0.83 in) |
| Color & Material | White, PC + ABS |
| Installation | Desktop, Wall or Ceiling Mounting |
| Environmental | |
| Operating Temperature | -20°C to +50°C (-4℉ to +122°F) |
| Storage Temperature | -40°C to +85°C (-40℉ to +185℉ |
| Ethernet Isolation | 1.5KV RMS |
| Relative Humidity | 0% to 95% (non-condensing) at 25°C/77°F |
| Approvals | |
| Regulatory | CE, FCC |
| Environmental | RoHS |
