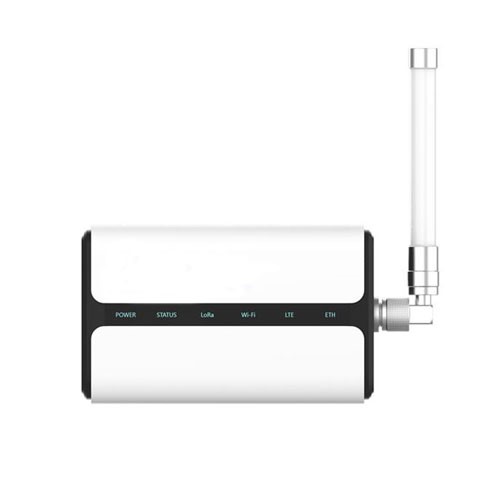

Trax20241 Indoor Rugged LoRaWAN Gateway
Trax20241 Indoor Rugged LoRaWAN Gateway Adopting SX1302 LoRa chip and high-performance quad-core CPU, Trax20241 Indoor Rugged LoRaWAN Gateway supports connection with more than 2000 nodes. Trax20241 Indoor Rugged LoRaWAN Gateway has line of sight up to 15 km and can cover about 2 km in urbanized environment, which is ideally suited to smart office, smart building and many other indoor applications. Trax20241 Indoor Rugged LoRaWAN Gateway supports not only multiple back-haul backups with Ethernet, Wi-Fi and cellular, but also has integrated mainstream network servers (such as TTI, ChirpStack, etc.) and built-in network server and IoT Cloud for easy deployment.
Description
FEATURES
- Quad-core industrial processor with big memory
- Equip with SX1302 chip, handling a higher amount of traffic with lower consumption
- 8 half/full-duplex channels
- IP65 enclosure and industrial design for parts of outdoor environment applications like eaves
- Desktop, wall or pole mounting
- Multi backhaul backups with Ethernet, cellular (4G/3G) and Wi-Fi
- DeviceHub and IoT Cloud provide easy and centralized management of remote devices
- Enable security communication with multiple VPNs like IPsec/OpenVPN/L2TP/PPTP/DMVPN
- Compatible with mainstream network servers like The Things Industries, ChirpStack, Actility, Everynet, etc.
- Detect and analyze the noise level and provide intuitive diagram for deployment
- Built-in network server and MQTT/HTTP/HTTPS API for easily integration
- Embedded Python SDK for users secondary development
- Fast and user-friendly programming by Node-RED development tool
| ITEM | ASPECT |
| Hardware System | |
| CPU | Quad-core 1.5 GHz, 64-bit ARM Cortex-A53 |
| Memory | 512 MB DDR4 RAM |
| Flash | 8 GB eMMC |
| LoRaWAN | |
| Antenna | 2 × Internal Antennas (Optional: 1 × 50 Ω N-Female External Connector) |
| Channel | 8 (Half/Full-duplex) |
| Frequency Band | CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4 |
| Sensitivity | -140dBm Sensitivity @292bps |
| Output Power | 27dBm Max |
| Protocol | V1.0 Class A/Class B/Class C and V1.0.2 Class A/Class B/Class C |
| Ethernet Interface | |
| Port | 1 × RJ45 (PoE PD supported) |
| Physical Layer | 10/100/1000 Base-T (IEEE 802.3) |
| Data Rate | 10/100 /1000 Mbps (Auto-Sensing) |
| Interface | Auto MDI/MDIX |
| Mode | Full or Half Duplex (Auto-Sensing) |
| Wi-Fi Interface | |
| Antenna | Internal Antenna |
| Standards | IEEE 802.11 b/g/n, 2.4GHz |
| Mode | AP or Client mode |
| Security | WPA/WPA2 authentication, WEP/TKIP/AES encryption |
| Tx Power | 802.11b: 18 dBm +/-2.0 dBm (11 Mbps) 802.11g: 15 dBm +/-2.0 dBm (6 Mbps) 802.11g: 15 dBm +/-2.0 dBm (54 Mbps) 802.11n@2.4 GHz: 14 dBm +/-2.0 dBm (MCS0_HT20) 802.11n@2.4 GHz: 14 dBm +/-2.0 dBm (MCS7_HT20) 802.11n@2.4 GHz: 13 dBm +/-2.0 dBm (MCS0_HT40) 802.11n@2.4 GHz: 13 dBm +/-2.0 dBm (MCS7_HT40 |
| Cellular Interface (Optional) | |
| Antenna | Internal Antenna |
| SIM Slot | 1 (mini SIM-2FF) |
| Others | |
| Reset Button | 1 × RST |
| Console Port | 1 × Type-C |
| LED Indicator | 1 × POWER, 1 × STATUS, 1 × LoRa, 1 × Wi-Fi, 1 × LTE, 1 × ETH |
| Built-in | Watchdog, RTC,Timer |
| Software | |
| Network Protocols | PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, DDNS, HTTP, HTTPS, DNS, ARP, SNTP, Telnet, SSH, MQTT, etc. |
| VPN Tunnel | OpenVPN/IPsec/PPTP/L2TP/GRE/DMVPN |
| Firewall | ACL/DMZ/Port Mapping/MAC Binding/URL Filter |
| Management | Web, CLI, SMS, On-demand dial up, DeviceHub, IoT Cloud, Yeastar Workplace Platform |
| Reliability | WAN Failover |
| App | Python SDK, Node-RED |
| Power Supply and Consumption | |
| Power Input | 1. 9-24 VDC by DC Male Jack Connector 2. 1 × 802.3 af PoE input |
| Power Consumption | Typical 2.9 W, Max 4.2 W |
| Physical Characteristics | |
| Ingress Protection | IP65 |
| Dimensions | 180 x 110 x 56.5 mm (7.09 x 4.33 x 2.22 in) |
| Installation | Desktop, Wall or Ceiling Mounting |
| Environmental | |
| Operating Temperature | -40°C to +70°C (-40℉ to +158℉) Reduced Cellular Performance Above 60° |
| Storage Temperature | -40°C to +85°C (-40℉ to +185℉ |
| Ethernet Isolation | 1.5KV RMS |
| Relative Humidity | 0% to 95% (non-condensing) at 25°C/77°F |
| Approvals | |
| Regulatory | CE, FCC,IC |
| Environmental | RoHS,REACH |
