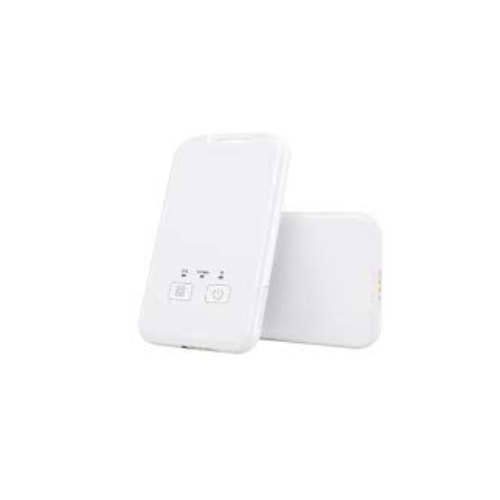

Trаx10286 Location 4G GPS Badge BLE Beacon
Trаx10286 Location 4G GPS Badge BLE Beacon is a groundbreaking Bluetooth® LTE location smart badge that seamlessly combines GNSS and Bluetooth positioning with real-time data uploads via cellular networks. Designed to address the challenges of delayed personnel tracking, difficult gateway setup, and staff safety management, Trаx10286 Location 4G GPS Badge BLE Beacon ensures precise location information across expansive outdoor areas and complex indoor environments. Additionally, it has an RFID function for access control and attendance management, as well as convenient magnetic charging. With this advanced solution, companies can optimize resource allocation, enhance employee safety, and efficiently manage attendance or location tracking services.
Description
Specifications
| Item | Aspect |
| Color | White (Buttons color customizable) |
| Weight | 64.3g (without accessories) |
| Protection | IP65 rating |
| Battery | 1,250mAh rechargeable battery |
| Charging time | 3h |
| Sensor | Accelerometer |
| Button | Power button, function button, reset button |
| Buzzer | Supported |
| NFC | Supported, about 1.5 cm |
| Data transmission | 4G LTE Cat.1 |
| Flash | BMB |
| Work temperature | -20-60°C |
| Chorging temperature | 0-45% |
| BLE Specs | |
| BLE version | Bluetooth® LE 5.0 |
| BLE band | 2.4 GHz, 40 channels (2400-2483.5 MHz) |
| Bluetooth bandwidths | 1Mbps |
| BLE scan distance | 85m (open area) |
| Scan period | Configurable |
| GNSS Specs | |
| Navigation satellite system | GPS/BDS/GLONASS/ Galilea |
| Positioning accuracy | <8.9m(open area) |
| Cellular Specs. | |
| Cellular Connection | 4G LTE Cat.1 |
| Cellular Networks | EU: LTE-FDD B1/3/5/7/8/20/28 |
| Bonds: | US: LTE-FDD B2/4/5/12/13/66 |
- GNSS and Bluetooth® positioning
- Intelligent positioning system switching
- Real-time data upload via cellular networks
- High-Precision extemal standalone GNSS module
- BLE filtering algorithm
- RFID access control
- Batch management
- Multi-functional buttons
- IP65 waterproof and dustproof
- Easy magnetic charging in a snap
