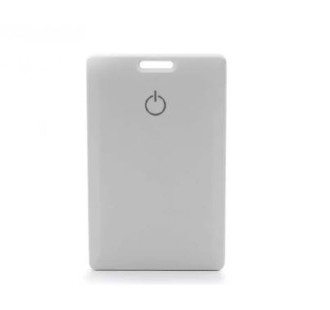

Trax10121-ID Card
Trax10121 BLE Beacon is based on BLE standards 5.0, Hi-tech device that advertises standard iBeacon, Eddystone (UID, URL, TLM) and Accelerometer sensor data simultaneously. It can be used to track and monitor the state of employees attendance, the students in school and people tracking applications. Easily configurable to different parameters to each beacon so that to meet different applications. Moreover,the card beacon combines with NFC/RFID options to meet some very close data communications.
Description
- Optional- NFC, RFID, Button, Accelerometer & LED
- Programmed standard iBeacon firmware
- Portable with external ON/OFF push button
- Ultra-low power consumption chipset nRF52 series
- BT Low Energy Beacon 5.0 compatible
| Item | Aspect | Comments |
| Case Color | White | |
| Material | ABS | Plastic housing |
| Battery Model | CP224147 | Not replaceable/ 800mAh |
| Operating Temperature | -20°C to +65°C | (Battery limit) |
| Waterproof level | IP66 waterproof grade | |
| Battery life | Up to 2 years | (Tx=0dBm; interval:900ms) |
| Transmit Power | -40dBm, -20dBm, -16dBm | -12dBm, -8dBm, -4dBm, 0dBm, 4dBm, |
| Antenna | 50ohm | On board/PCB Antenna |
| Size | 86mm x 54mm x 4mm | |
| Net Weight | 18g | With battery |
| Interval | From 100ms to 5000ms | |
| Range | Up to 80 meters | |
| Certifications | CE, FCC, RoHS, REACH, BLE QDID/EPL |
