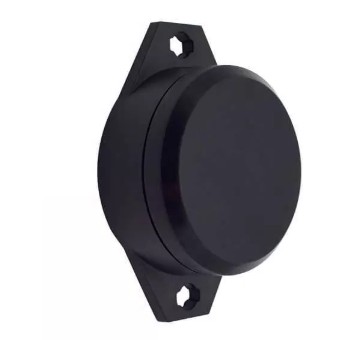

Trax10171-Asset IP67 Beacon
Trax10171 Asset IP67 Beacon is a Low Energy proximity device, based on new-generation BLE chip Nordic nRF52. It simultaneously supports multiple technologies iBeacon and Eddystone (UID, URL, TLM). Beacon was designed for indoor and outdoor rugged applications, as it has IP67 waterproof rating.
Description
Beacon can be customized with an accelerometer or temperature sensor for various applications like asset and equipment tracking. Beacon can be fastened or tie wrapped to an asset or items, base flanges and enclosure has a rugged design with an easily accessible top lid to replace batteries.
- Battery life up to 24-36 months, depends on transmission signal interval
- Battery model CR2477 and replaceable
- BT Low Energy Beacon 5.0 compatible, transmission interval from 100ms to 5000ms
- Supports iBeacon, Eddystone (UID, URL, TLM)
- Read range between 20 -50 meters, maximum up to 100 meters in open space
| Item | Aspect |
| Supported protocol | iBeacon, Eddystone, Sensor Data Advertising |
| Sensor Options | Accelerometer, Temperature Sensor |
| Battery replaceable | Easy to replace battery |
| Installation method | Screws mounting, double-sided adhesive |
| IP Rating | IP67 waterproof grade |
| Battery Model | CR2477 |
| Battery Capacity | 1000mAh |
| Operating Temperature | -20°C to +70°C (Battery limit) |
| Battery life (Tx=0dBm; Interval: 900ms) | Up to 24-36 months, depends on transmission interval |
| Configuration App | iOS & Android |
| Low Energy Beacon (BLE) | BLE Beacon Standard 5.0 compatible |
| Transmission Interval | From 100ms to 5000ms |
| Transmission Power | -40dBm, -20dBm, -16dBm, -12dBm, -8dBm, -4dBm, 0dBm, 4dBm |
| Range | up to 100 meters in open space |
| Material | ABS plastic housing |
| Dimensions | 49 x 66 x 17.5mm |
| Weight | 22g |
| Chipset | nRF52 |
| Color | Black |
| Compliance certification | CE, FCC, BLE QDID/EPL |
