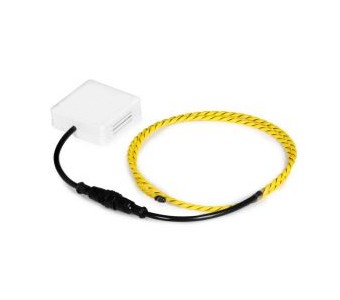

Trax10218- Water Leak BLE Sensor
Trax10218 Water Leak BLE sensors are used in places where uncontrolled leakage can cause large damages, Measurement of the presence of a conductive liquid at any point along the entire length of the probe. BLE Beacon sensors are ideal for monitoring leakage from heating devices, air conditioning systems, warehouse, server rooms, laboratories, dishwashers, washing machines, pumps and refrigerators or freezers.
Description
Using a free mobile application to configure the device and read the data from its memory. If you have Gateways collecting data via BLE interface, you easily setup remote monitoring systems. Battery ensures up to 5 years of maintenance free operation.
| Item | Aspect |
| Water Sensor | Measurement of the presence of a conductive liquid at any point along the entire length of the probe |
| Sensor Probe | Probe length 3m (different lengths can be ordered) |
| Communication | BLE |
| Radio Frequency | 2,4 GHz |
| Measurement interval | 1 minute to 10 days, configurable |
| Power | 2,5 mW (4 dBm) |
| Range | 20 -30 meters indoor, up to 100 m (Open spaces) |
| BLE Beacon Standard | BLE 4.0 |
| Transmission frequency | 1s |
| Battery | Battery: 3,6 V, size AA, capacity 2 700 mAh (replaceable) |
| Battery life time | Battery operating time: at least 5 years (Intervals: 15 min) |
| Sensor storage/Memory size | Up to 60,000 measurements stored |
| Dimension | 27 x 71 x 71 mm |
| Weight | 80 g |
| Enclosure | Plastic ABS, color white |
| IP Rating | IP30 |
| Operating Temperature | -35° to 70°C |
| Humidity | 0 to 99 non-condensing |
| Storage Temperature | -40° to 70°C |
| Certified | BLE4.0, CE, EMC & Radio Spectrum Efficiency |
Applications
- Industrial storage
- Server rooms
- Equipment monitoring
- Cold storage
- Inventory Control
