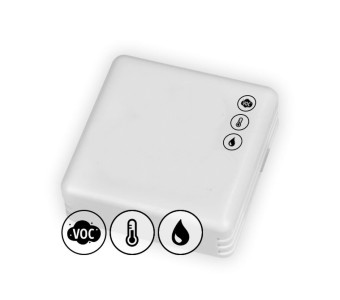

Trax10219- Air Quality BLE Sensor
Trax10219 Air quality BLE sensor designed to monitor indoor climate conditions, the device measures air quality based on the concentration of volatile organic compounds (VOC) and calculates IAQ (Indoor Air Quality) representing air quality in the room based on the Bosch patented algorithm. Volatile organic compounds are substances derived from many indoor products, including from paints, cleaning agents, solvents, alcohol or glue. Some volatile organic compounds are carcinogenic. In addition, the sensor measures the temperature and relative humidity of air, which, in combination with the VOC concentration, gives a full picture of the room conditions.
Description
Using a free mobile application to configure the device and read the data from its memory. If you have Gateways collecting data via BLE interface, you easily setup remote monitoring systems. Battery ensures up to 5 years of maintenance free operation.
Features :
- Air quality: 0-500 IAQ 0-50 – Good 51-100 – Average 101-150 – Little bad 151-200 – Bad 301-500 – Worse 500+ Very bad
- Temperature: -35 to +70°C, accuracy: up to 0.4°C in the range from -20°C to +70°C and up to 0.5°C in the range -35 to -20°
- Humidity: 0 to 100% RH, accuracy 4% in the range of 0 to 80% and 7% in the range of 81 to 99%
- Measurement period between 1 minute – 10 days (configurable by the user)
| Item | Aspect |
| Air Quality Sensor | 0-500 IAQ |
| Pressure | 300 to 1100 hPa, absolute accuracy +/- 3 hPa at 0 to + 65°C, |
| relative +/- 0.12 hPa at 0 to + 65°C, p = 800 – 900 hPa | |
| Temperature Sensor | Range: -35° to 70°C, Accuracy up to 0.25°C in the -20°C +70°C |
| and 0.5°C in the -35°C to -20°C range, | |
| Resolution: 0.1°C, Drift: <0.1°C / year, | |
| Humidity Sensor | Range: 0 to 100% RH, |
| Accuracy: 4% in the range of 0 to 80% and 7% in the range of 81 to 99% | |
| Communication | BLE |
| Radio Frequency | 2,4 GHz |
| Measurement interval | 1 minute to 10 days, configurable |
| Power | 2,5 mW (4 dBm) |
| Range | 20 -30 meters indoor, up to 100 m (LoS) |
| BLE Beacon Standard | BLE 4.0 |
| Transmission frequency | 1s |
| Battery | Battery: 3,6 V, size AA, capacity 2 700 mAh (replaceable) |
| Battery life time | Battery operating time: at least 5 years (Intervals: 15 min) |
| Sensor storage/Memory size | Up to 60,000 measurements stored |
| Dimension | 27 x 71 x 71 mm |
| Weight | 80 g |
| Enclosure | Plastic ABS, color white |
| IP Rating | IP30 |
| Operating Temperature | -35° to 70°C |
| Humidity | 0 to 99 non-condensing |
| Storage Temperature | -40° to 70°C |
| Certified | BLE4.0, CE, EMC & Radio Spectrum Efficiency |
Applications
- Hospitals
- Server rooms
- Manufacturing
- Industrial environments
