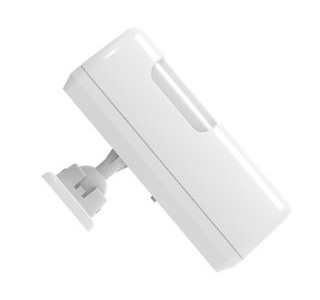

Trax10231-Proximity Infrared BLE Sensor
Trax10231 Proximity Infrared Sensor is a passive infrared sensor supporting BLE 5.0 technology, mainly designed for human movement monitoring in an indoor environment. It translates the PIR signal from the human body received by the pyroelectric infrared sensor inside to the voltage signal for alerts. Users can either detect indoor environments anytime through the sensor from the data received by the gateway remotely.
Description
Trax10231 Proximity infrared sensor has multiple sensors to detect and gather additional information like temperature and humidity levels within the room. Sensor uses nRF52 series chip, useful for applications which require detection and alarms. Sensor can be easily customized and configured for easy installation. Detection range is between 3-5 meters.
| Item | Aspect |
| BLE Beacon | BLE Beacon Standard 5.0 compatible |
| Antenna | PCB Antenna |
| Chipset | nRF52 series |
| BLE protocol | iBeacon & Eddystone & Sensor Data |
| Compatibility | iOS 12.1 and above & Android 4.3 and above supported |
| Sensors | PIR, Accelerometer, Temperature & Humidity Sensors （Included） |
| Configuration parameters | UUID, Major, Minor, Device Name, Device ID, Password, |
| Advertising Interval, Tx Power, etc. | |
| Settings | 3 Customized monitoring periods, Alarm time configurable |
| Battery Capacity | 2 pcs AA batteries, 2900mAh capacity in total, replaceable |
| Operating Temperature | -15~50℃ |
| Color | White |
| Dimensions | 90*52*38mm |
| Weight | 96g+10g (Battery & Accessories included) |
| Material | ABS |
| Mounting | Rotatable bracket, adjustable to detecting angles |
| Certification | CE, FCC, BLE Beacon 5.0 |
Applications:
- People Monitoring
- Asset Tracking
- Security Alarm
- Logistics
- Cold storage
- Inventory Control
