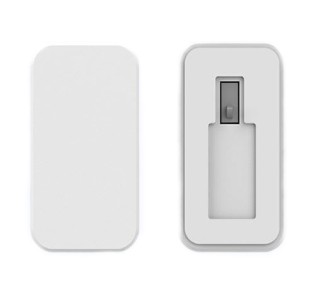

Trax10232-Anti-Tamper Asset BLE Beacon
Trax10232 Anti-Tamper Asset BLE Beacon is designed for tamper alerts requirements in Asset tracking and security monitoring applications. Beacon has BLE 5.0 nRF52 series ultra low energy consumption chip, the broadcast distance can reach up to 100 meters on the default settings, ensuring long read range for asset management in warehouse environments. Due to its portable design, the device can also be deployed on the medical equipment in the hospitals, thus improving the use and management of medical resources.
Description
Trax10232 location tag with an anti-tamper button that is intended for asset tracking. If forcibly removed, Trax10232 will broadcast a specific signal and inform the server and administrator to ensure asset security. Battery life can reach up to 2 years under default settings. Beacons has a protection rating of IP65 waterproof & dust proof grade. Ideal for asset security and tracking applications.
| Item | Aspect |
| BLE Beacons | BLE 5.0 compatible |
| Antenna | PCB Antenna |
| Chipset | nRF52 series |
| BT Low Energy Protocol | iBeacon & Eddystone & Sensor Data |
| Compatibility | iOS 12.1 and above & Android 4.3 and above supported |
| IP Rating | IP65 waterproof and dust proof |
| Configuration parameters | UUID, Major, Minor, Device Name, Device ID, Password, |
| Advertising Interval, Tx Power, etc. | |
| Sensor | Toggle switch for tamper alerts |
| Battery life | Up to 2 years (default settings) |
| Battery | CR Button Series, 220 mAh |
| Operating Temperature | -20℃ ~ 60℃ |
| Color | White |
| Dimensions | 42.5*23.5*5.3 mm |
| Weight | 6.4g |
| Material | ABS |
| Mounting | Adhesive backing |
| Certification | CE, FCC, BLE Beacon standard 5.0 |
Applications:
- Asset Monitoring
- Equipment Security
- Security Alarm
- Logistics
- Cold storage
- Inventory Control
