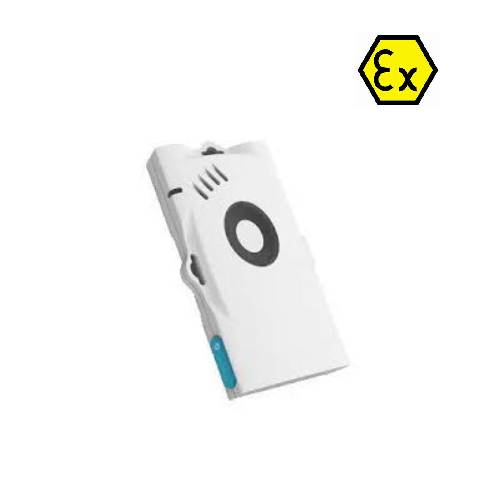

Trax10288 ATEX ID Badge GPS BLE Beacon
The Trax10288 ATEX ID Badge GPS BLE Beacon is a portable multi-mode tracker in ID card format with embedded sensors combining multi-constellation GNSS, Low-power GPS(2), Wi-Fi Sniffer), BLE and LoRaWAN TDoA (4) geolocation technologies, supporting seamless outdoor and indoor geolocation.
This device is ideal for contact back-tracing, zone notification and monitoring of workforce safety and security. Simple to use, a single button gives you access to the numerous functionalities you may personalize for your needs, e.g. as a Panic/SOS Button. A local zoning feature is able to signal danger zones with a 96 dBa buzzer. It has a robust, industrial-grade magnetic connector for recharging the battery, and optional multi-slot charging/upgrade dock.
Description
| Item | Aspect | |||
| Physical configuration | ||||
| Size | 90mm x 65 mm x 11 mm (Llh) | |||
| Weight | 64g | |||
| Waterproof capability | IP65 | |||
| Operating temperatures | – 10 deg * C 55 deg * C | |||
| Charging temperatures | 0 deg C1 45 deg * C | |||
| Storage temperature | 10 deg * C to 30 deg * C recommended) | |||
| Time storage max | 6 months | |||
| Humidity | 5% to 95% non-condensing | |||
| Estimated battery lifetime | ||||
| Use Case | Battery Life (Approx.) | |||
| 1 GNSS position/hour | 1.5 month | |||
| 1 LPGPS position/hour | 9.6 months | |||
| 1WiFi position/hour | 1.6 year | |||
| Standby | >1.8 years | |||
| Data communication support | ||||
| LoRaWAN Modem | Semtech SX1261 transceiver | |||
| Protocol | LoRaWAN Class A | |||
| LoRaWAN frequency bands | EU868MHz/US915MHz / AS923MHz | |||
| Configuration supported | LoRaWAN OTA or ABP | |||
| RF power | 14 dBm/18 dBm (max) | |||
| Min sensitivity of LoRaWAN receiver | -130 dBm in SF 10 | |||
| Wi-Fi Frequency band | -135 dBm in SF 12 | |||
| BLE sensitivity | 2412-2472MHz | |||
| BLE RF output power | -88 dBm | |||
| BLE frequency band | 4 dBm max | |||
| GNSS band | 2402-2480MHz | |||
| Standards and Certifications | ||||
| LoRa Alliance EU868, US915, AS923 | ||||
| Radio regulatory certification: EC, FCC, IC, TELEC, IMDA | ||||
| Position accuracy | ||||
| GNSS (GPS/Baidu/Glonass/ Galileo) | Position Accuracy (50%-90%) | 10 to 20 meters | ||
| Time To First Fix | Cold start | 30-50 seconds | ||
| Hot start | <5 seconds | |||
| Acquisition sensitivity | -140 dBm | |||
| Low power GPS) | Position Accuracy (50%-90%) | 15-30 meters | ||
| Time To First Fix | <10 seconds | |||
| Acquisition sensitivity | -144 dBm | |||
| Wi-Fi(10) | Indoor and Deep Urban Position Accuracy | 20-50 meters | ||
| Time to get a position | 3 seconds | |||
| Sensitivity | -86 dBm | |||
| BLE for positioning(10) | Sensitivity | 5-15 m | ||
| BLE for positioning(1억 | 1 second | |||
| BLE for proximity | Proximity Detection Accuracy | See Proximity Application Note | ||
Applications
- Multi-mode tracking for employees, workers, visitors
- Contact back-tracing, proximity detection for sanitary policy enforcement
- SOS panic alarm for indoor and outdoor lone workers
- Danger zones or restricted areas access notifications
