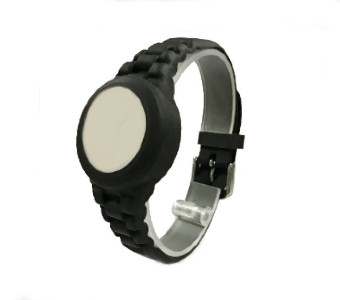

Trax10189-BLE Wristband Beacon
Trax10189 BLE Wristband Beacon is compatible with BLE 5.0 standard and it is designed to full fill all requirements for people flow management and secure access control use cases. Due to its optimized and ultra-low power consumption, the beacon guarantees un-surpassed battery lifetimes. Its built-in with high precision accelerometer sensor permits to detect any movements, vibrations, shocks or a specific fall. The accelerometer parameters are configurable in order to adjust them to the final needs of the application.
Description
Wristband BLE tag is also available with a temperature sensor which enriches the overall functionalities of the tag, all tag configuration parameters can be updated over-the-air through a specific profile service. A secure operational mode is also available and based on an AES-128 crypto algorithm. An optional NFC function can be added in order to provide extra functionalities as registration, access control or micro-payments.
| Item | Aspect |
| Operating Frequency | BLE 2.45 GHz and optional (NFC)13.56 MHz |
| Technology | Eddystone (UID, TLM, URL), iBeacon and Alt Beacon protocols, optional Buzzer/Vibration |
| Standards | Compatible with BLE 5.0 |
| NFC | ISO/IEC15693 (NFC Tag Type 5), ISO/IEC14443 (NFC Tag Type 2) |
| Battery | CR2032, 3 Volts Lithium battery |
| Battery Life | Up to 3 years depending on the Beacon configurations |
| Reading Range | Up to 75 meters (BLE), Up to 10 cm (NFC), Line of Sight up to 200 meters |
| Sensors | Accelerometer and optional Temperature with an accuracy of 0.8° C |
| Dimensions / Weight | Tag Diameter 30mm, Strap 255mm x 16mm x 2.4mm |
| Color | White or Black, (Other colors available at MoQ 10K) |
| Material | Strap – Silicon and stainless steel |
| Operating Temp | -30°C to +60°C or -22°F to +140°F |
| Storage Temp | -30°C to +60°C or -22°F to +140°F |
| IP Rating | IP68 (1m, 24h) |
| Environmental | Saltwater, salt mist, acetic acid water, carbonated sodium water, |
| Chemical properties | Sugared water, ethylene glycol, humidity 95% (50°C, 24h) |
| Optional | NFC, Sensors Accelerometer and Temperature |
| Certificates | BLE, CE, FCC, ISED, RoHS & Reach |
| Printing optional | Barcode, QR Code, Silkscreen, Offset |
| Standard version | BLE Wristband |
| Trax10189 Option-2 | BLE Wristband with Accelerometer, NFC (Type 5) |
| Trax10189 Option-3 | BLE Wristband with Accelerometer & Temperature |
| Trax10189 Option-4 | BLE Wristband with Accelerometer & Temperature, NFC (Type 5) |
| Trax10189 Option-5 | BLE – sensor, offset printing, ID#, logo, laser engraving, QR code |
Applications:
- Access control
- Event Management
- Patient Locating
- People Tracking & Locating
- Amusement park access
- Exhibition event attendees
- Fitness and Spa access
- Employee & visitor management
