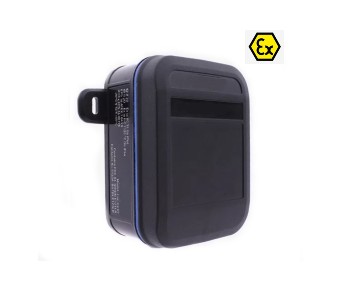

Trax10190-Intrinsically Safe ATEX BLE Beacon
Trax10190 Intrinsically Safe ATEX BLE Beacon is a BT Low Energy 4.0 standard makes the beacons compatible with currently popular smartphones & tablets and they can be recognized by such devices over a distance of up to 200 m. The beacon signals can be evaluated by the mobile device via individual applications and, in this way, interact with the user or other programs. The beacons are available for ATEX / IECEx Zone 1/21, with NEC / CEC approval and for non-ex areas. Due to their UV-resistant housing material they can be used both, indoors and outdoors.
Description
Designed for inside and outside the EX- HAZARDOUS Area, ATEX BLE beacons can be mounted directly on a suitable surface or easily adapted on the optional available mounting plate (which facilitates the battery exchange of the beacons).
| Item | Aspect |
| BLE Standard | BLE Beacon Standard 4.0 |
| Read range | Inside building Up to 30 meters, Outdoors up to 200meters |
| Updates | OTA |
| Ambient temperature | -20°C … +55°C |
| Storage temperature | -30°C … +30°C |
| Power supply | 2 x LS14500* (Ex® 01) or 2 x AA** |
| Operating time | Approx. 4 years* (default settings), approx. 2 years (AA power**) |
| Transmission power | max. 8 dBm |
| Dimensions | 48 x 111 x 102 mm (H x L x W) |
| Weight | approx. 180g (with batteries) |
| CE-designation | CE0102 |
| Certification | ATEX / IECEx Zone 1/21 |
| ATEX-Ex | Ex II 2G Ex ia IIC T4 Gb IP64, Ex II 2D Ex ia IIIC T125°C Db IP64 |
| IECEx | Ex ia IIC T4 Gb IP64, Ex ia IIIC T125°C Db IP64 |
| CSA | CSA (Northern American, NEC/ CEC) |
| NEC & CEC | Class I, II, III, Division 1 Groups A-G, T4, Class 1, Zone 1, AEx ia IIC T4 Gb, Ex ia IIC T4 Gb |
| NEC & CEC | Class II, Zone 21, AEx ia IIIC T125°C Db IP64, Ex ia IIIC T125°C Db IP64 |
| IP Rating | IP64 Stable UV-resistant enclosure |
| Printing optional | Barcode, QR Code, Silkscreen, Offset |
| Standard ATEX * | Beacon with ATEX / IECEx Zone 1/21 |
| Trax10190 Option-2** | Beacon with NEC & CEC approval |
| Accessories (optional) | (Batteries, Mounting plate) |
Applications:
- Indoor Localization
- Lone worker protection
- Physical access control
- Guard control system
- People Tracking & Locating
- Contractor & visitor management
